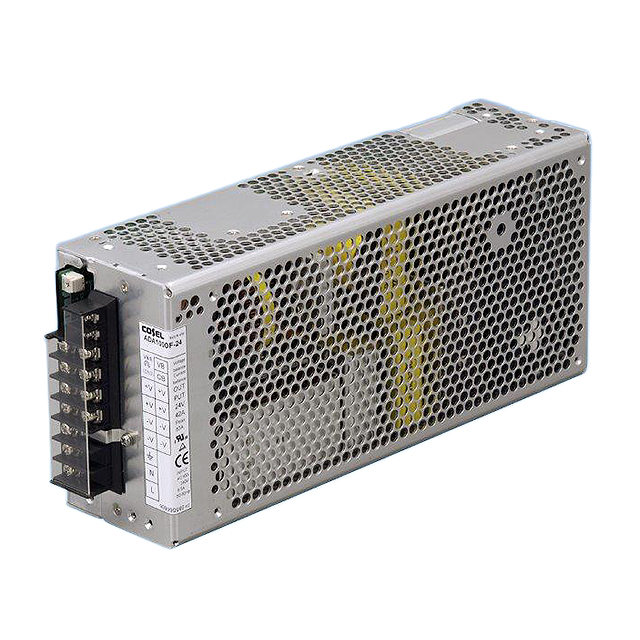

ADA1000 Series

Catalog

AC/DC CONVERTER 36V 594W

...

Part	Features	Type	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1 [custom]	Voltage - Isolation	Mounting Type	Approval Agency	Current - Output 1	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]
Cosel USA, Inc. ADA1000F-36-C	Adjustable Output DC Input Capable PFC Universal Input	Conformal Coated Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in	36 V	3000 V	Chassis Mount	CE CSA cURus TUV UL	16.5 A	1	89 %	71 °C	-10 °C	594 W	1008 W	ITE (Commercial)
Cosel USA, Inc. ADA1000F-36-J	Adjustable Output DC Input Capable PFC Universal Input	Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in	36 V	3000 V	Chassis Mount	CE CSA cURus TUV UL	16.5 A	1	89 %	71 °C	-10 °C	594 W	1008 W	ITE (Commercial)
Cosel USA, Inc. ADA1000F-48-N1	Adjustable Output PFC Universal Input		60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V		CE CSA cURus TUV UL		1	89 %	71 °C	-10 °C	552 W	1008 W	ITE (Commercial)	11.5 A	48 V	AC	264 VAC	85 VAC
Cosel USA, Inc. ADA1000F-30-J	Adjustable Output DC Input Capable PFC Universal Input	Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V	Chassis Mount	CE CSA cURus TUV UL	20 A	1	88 %	71 °C	-10 °C	600 W	1005 W	ITE (Commercial)		30 V
Cosel USA, Inc. ADA1000F-30-CR	Adjustable Output DC Input Capable PFC Remote On/Off Universal Input	Conformal Coated Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V	Chassis Mount	CE CSA cURus TUV UL	20 A	1	88 %	71 °C	-10 °C	600 W	1005 W	ITE (Commercial)		30 V
Cosel USA, Inc. ADA1000F-24	Adjustable Output DC Input Capable PFC Universal Input	Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V	Chassis Mount	CE CSA cURus TUV UL	25 A	1	88 %	71 °C	-10 °C	600 W	1008 W	ITE (Commercial)		24 V
Cosel USA, Inc. ADA1000F-24-CT	Adjustable Output DC Input Capable PFC Universal Input	Conformal Coated Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V	Chassis Mount	CE CSA cURus TUV UL	25 A	1	88 %	71 °C	-10 °C	600 W	1008 W	ITE (Commercial)		24 V
Cosel USA, Inc. ADA1000F-30-F	Adjustable Output DC Input Capable PFC Universal Input	Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V	Chassis Mount	CE CSA cURus TUV UL	20 A	1	88 %	71 °C	-10 °C	600 W	1005 W	ITE (Commercial)		30 V
Cosel USA, Inc. ADA1000F-36-CT	Adjustable Output DC Input Capable PFC Universal Input	Conformal Coated Enclosed	60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in	36 V	3000 V	Chassis Mount	CE CSA cURus TUV UL	16.5 A	1	89 %	71 °C	-10 °C	594 W	1008 W	ITE (Commercial)
Cosel USA, Inc. ADA1000F-24-CN1	Adjustable Output PFC Universal Input		60950-1 62368-1	2.95 in	280 mm	5 in	5 in	75 mm	11.02 in		3000 V		CE CSA cURus TUV UL		1	88 %	71 °C	-10 °C	600 W	1008 W	ITE (Commercial)	25 A	24 V	AC	264 VAC	85 VAC
