TPS548B22 Series

2.7-V to 16-V input, 20-A synchronous step-down converter with remote sense and hiccup current limit

Catalog

2.7-V to 16-V input, 20-A synchronous step-down converter with remote sense and hiccup current limit

Part	Frequency - Switching	Function	Supplier Device Package	Voltage - Output (Max) [Max]	Topology	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Current - Output	Main Purpose	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Output	Regulator Topology	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Output [Max]	Voltage - Output [Min]
Texas Instruments TPS548D22RVFT	Selectable	Step-Down	40-LQFN-CLIP (7x5)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.6 V	Positive	1.5 V	Surface Mount	40-PowerLFQFN	40 A
Texas Instruments TPS548D22EVM-784																40 A	DC/DC Step Down	650 kHz	Non-Isolated	1	5 V	16 V	Fully Populated	Board(s)	TPS548D22	1 V	Buck

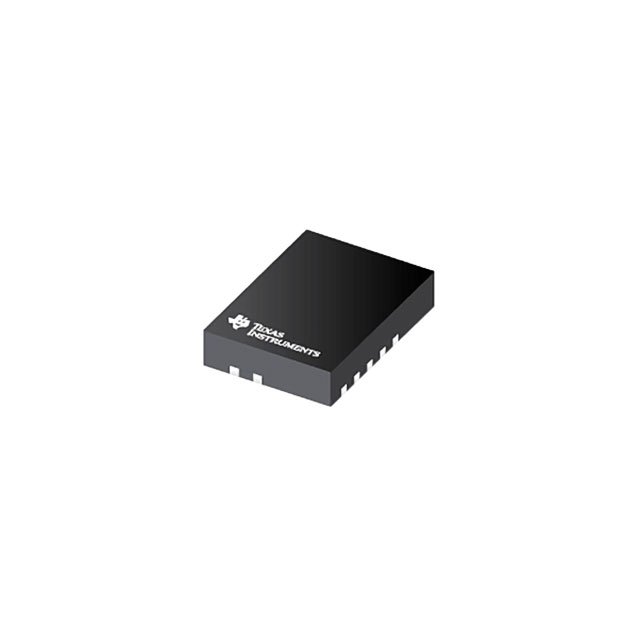

Texas Instruments TPS548B27RYLR		Step-Down	19-VQFN-FCRLF (4x3)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.6 V	Positive	2.7 V	Surface Mount	19-PowerTFQFN	20 A		1 MHz 600 kHz 800 kHz
Texas Instruments TPS548D26RXXR		Step-Down	37-WQFN-FCRLF (5x6)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.6 V	Positive	2.7 V	Surface Mount Wettable Flank	37-PowerWFQFN	40 A												600 kHz	1.2 MHz

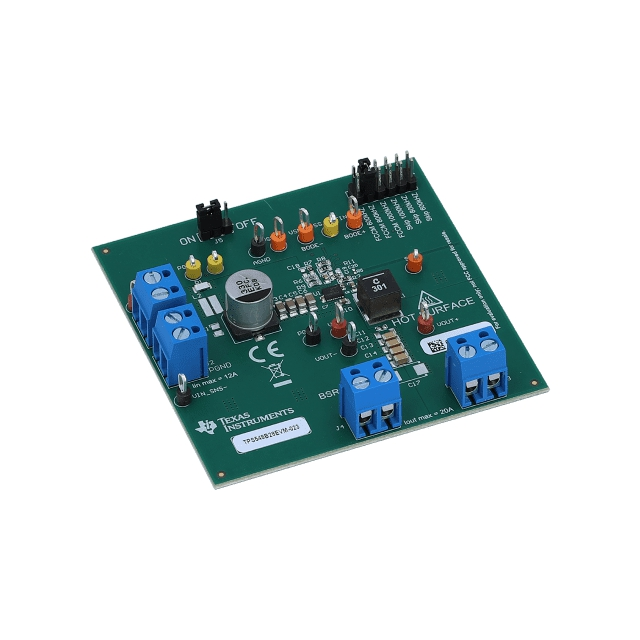

Texas Instruments TPS548A29EVM-023																15 A	DC/DC Step Down		Non-Isolated	1	1.5 V	20 V	Fully Populated	Board(s)	TPS548A29		Buck			5.5 V	0.6 V

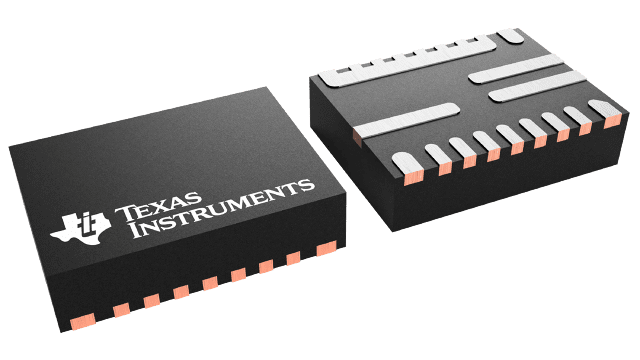

Texas Instruments TPS548A29RWWR		Step-Down	21-VQFN-HR (4x3)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.6 V	Positive	2.7 V	Surface Mount		15 A		1 MHz 600 kHz 800 kHz
Texas Instruments TPS548A20RVER	Selectable	Step-Down	28-VQFN-CLIP (4.5x3.5)	5.5 V	Buck	1	-40 °C	125 °C	20 V	Adjustable	0.6 V	Positive	1.5 V	Surface Mount	28-VFQFN Exposed Pad	15 A
Texas Instruments TPS548C26RXXR		Step-Down	37-WQFN-FCRLF (5x6)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.8 V	Positive	2.7 V	Surface Mount Wettable Flank	37-PowerWFQFN	35 A		1 MHz 1.2 MHz 600 kHz 800 kHz
Texas Instruments TPS548D22RVFR	Selectable	Step-Down	40-LQFN-CLIP (7x5)	5.5 V	Buck	1	-40 °C	125 ¯C	16 V	Adjustable	0.6 V	Positive	1.5 V	Surface Mount	40-PowerLFQFN	40 A
Texas Instruments TPS548B22RVFT	Selectable	Step-Down	40-LQFN-CLIP (7x5)	5.5 V	Buck	1	-40 °C	125 °C	18 V	Adjustable	0.6 V	Positive	1.5 V	Surface Mount	40-PowerLFQFN	25 A

Catalog

2.7-V to 16-V input, 20-A synchronous step-down converter with remote sense and hiccup current limit

Key Features

• Integrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operationSupports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltage0.8-V to 5.5-V output voltage rangePrecision voltage reference and differential remote sense for high output accuracy±0.5% VOUTtolerance from 0°C to 85°C TJ±1% VOUTtolerance from –40°C to 125°C TJD-CAP+™ control topology with fast transient response, supporting all ceramic output capacitorsSelectable internal loop compensation through SS pinSelectable cycle-by-cycle valley current limitSelectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operationSafe start-up into pre-biased outputsProgrammable soft-start time from 1 ms to 8 msOpen-drain power-good output (PG)Overcurrent, overvoltage, undervoltage, overtemperature protections with selectable hiccup or latch-off response5-mm × 6-mm, 37-pin WQFN-FCRLF packageTPS544C26SVID/I2C converter in the same package availableIntegrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operationSupports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltage0.8-V to 5.5-V output voltage rangePrecision voltage reference and differential remote sense for high output accuracy±0.5% VOUTtolerance from 0°C to 85°C TJ±1% VOUTtolerance from –40°C to 125°C TJD-CAP+™ control topology with fast transient response, supporting all ceramic output capacitorsSelectable internal loop compensation through SS pinSelectable cycle-by-cycle valley current limitSelectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operationSafe start-up into pre-biased outputsProgrammable soft-start time from 1 ms to 8 msOpen-drain power-good output (PG)Overcurrent, overvoltage, undervoltage, overtemperature protections with selectable hiccup or latch-off response5-mm × 6-mm, 37-pin WQFN-FCRLF packageTPS544C26SVID/I2C converter in the same package available

Description

The TPS548D26 device is a highly integrated buck converter with D-CAP+ control topology for fast transient response. Because external compensation is not required, the device is easy to use and requires few external components. The device is well-designed for space-constrained data center applications. The TPS548D26 device has true differential remote sense, high-performance integrated MOSFETs, and an accurate ±1%, 0.6V reference over the full operating junction temperature range. The device features fast load-transient response, accurate load regulation and line regulation, skip-mode or FCCM operation, and programmable soft-start time. Overcurrent, overvoltage, undervoltage, and overtemperature protections are provided with selectable hiccup or latch-off response. The TPS548D26 device is a lead-free device and is RoHS compliant without exemption. The TPS548D26 device is a highly integrated buck converter with D-CAP+ control topology for fast transient response. Because external compensation is not required, the device is easy to use and requires few external components. The device is well-designed for space-constrained data center applications. The TPS548D26 device has true differential remote sense, high-performance integrated MOSFETs, and an accurate ±1%, 0.6V reference over the full operating junction temperature range. The device features fast load-transient response, accurate load regulation and line regulation, skip-mode or FCCM operation, and programmable soft-start time. Overcurrent, overvoltage, undervoltage, and overtemperature protections are provided with selectable hiccup or latch-off response. The TPS548D26 device is a lead-free device and is RoHS compliant without exemption.
