SFR26R Series

Catalog

CONN FFC BOTTOM 26POS 0.8MM R/A

Part	Actuator Color	Housing Color	Pitch	Pitch	Material Flammability Rating	Mounting Type	Contact Finish	Number of Positions	Termination	Actuator Material	Contact Material	Cable End Type	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Locking Feature	Housing Material	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Connector/Contact Type

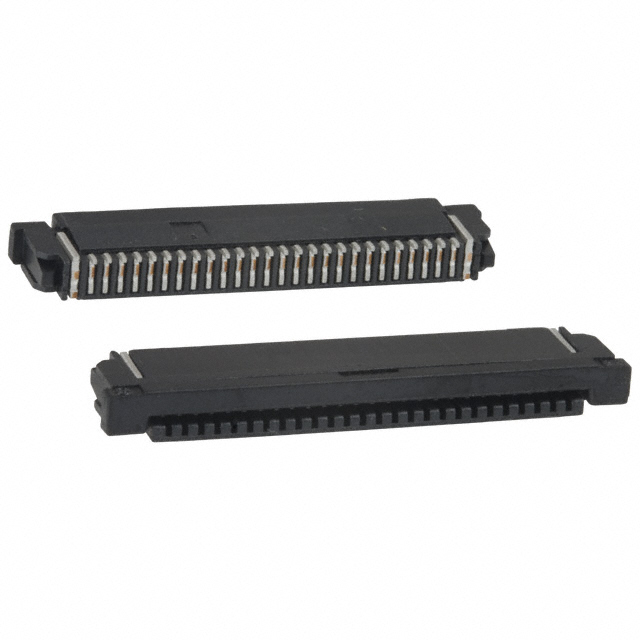

Amphenol ICC (FCI) SFR26R-1STE1LF	Black	Black	0.8 mm	0.031 in	UL94 V-0	Right Angle Surface Mount	Tin	26	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Straight or Tapered	FFC FPC	0.098 in	2.5 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Contacts Bottom
