AMI-22B Series

Catalog

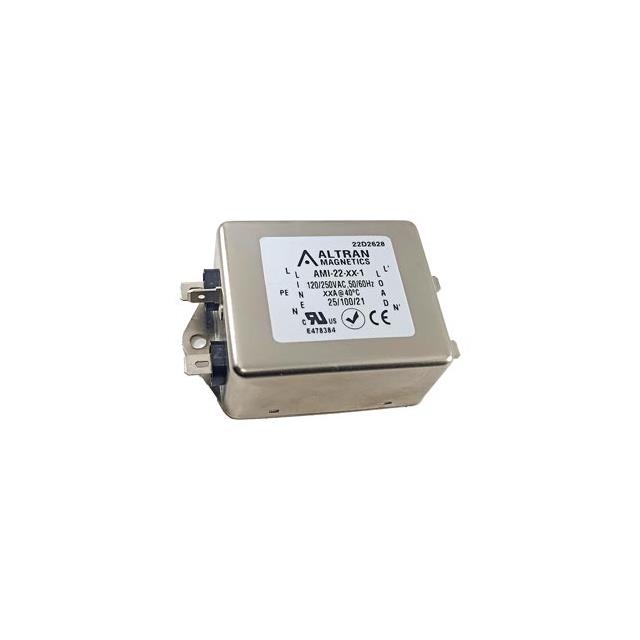

LINE FILTER 250VAC 16A CHASSIS

Part	Mounting Type	Approval Agency	Voltage - Rated AC	Frequency - Operating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Current	Inductance	Configuration	Termination Style
Altran Magnetics, LLC AMI-22B-16-3	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	16 A	650 µH	Single Stage	Quick Connect Wire Leads
Altran Magnetics, LLC AMI-22B-10-3	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	10 A	800 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-20-6	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	20 A	600 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-3-3	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	3 A	670 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-6-1	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	6 A	1 mH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-3-1	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	3 A	670 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-10-1	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	10 A	800 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-1-1	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	1 A		Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-20-3	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	20 A	600 µH	Single Stage	Quick Connect
Altran Magnetics, LLC AMI-22B-12-3	Chassis Mount	CE cURus	250 V	DC ~ 400Hz	Medical	100 °C	-25 °C	Single Phase	12 A	700 µH	Single Stage	Quick Connect
