ME20A0903 Series

Catalog

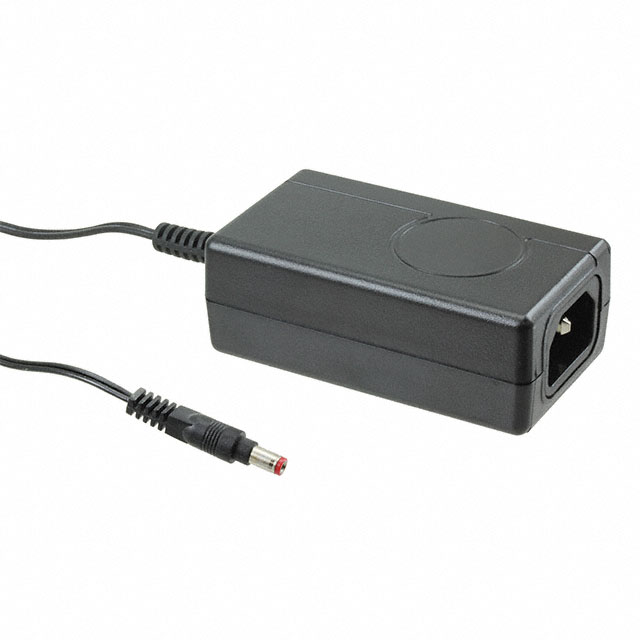

AC/DC DESKTOP ADAPTER 9V 18W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Region Utilized	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Form	Input Type	Power (Watts)	Polarization	Cord Length	Cord Length	Applications	No Load Power Consumption

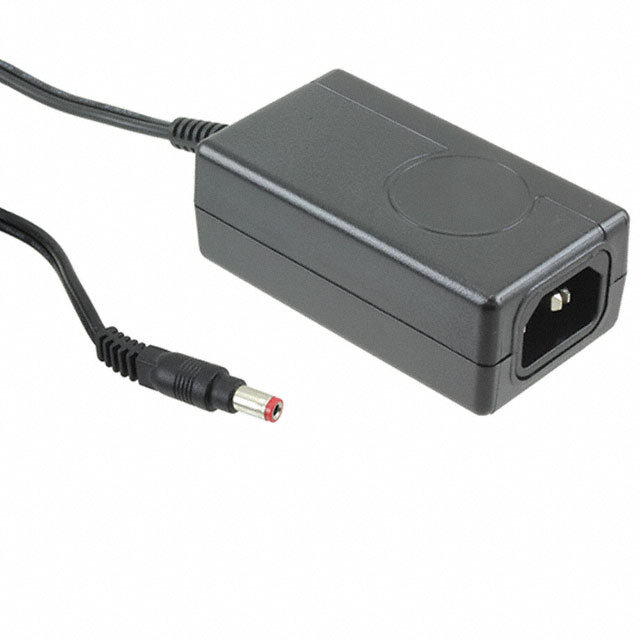

SL POWER / Advanced Energy ME20A0903F01	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	2 A	264 VAC	90 VAC	IEC 320-C14	International	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	CE	-20 ░C	50 °C	9 V	Desktop (Class I)	Cord (Sold Separately)	18 W	Positive Center	1.5 m	59 in	Medical	100 mW
SL POWER / Advanced Energy ME20A0903B01	38 mm	47 mm	3.31 "	1.5 in	1.85 in	84 mm	2 A	264 VAC	90 VAC	NEMA 1-15P Multi-Blade	North America	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	CE	-20 ░C	50 °C	9 V	Wall Mount	Fixed Blade Multi-Blade	18 W	Positive Center	1.5 m	59 in	Medical	100 mW
SL POWER / Advanced Energy ME20A0903N01	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	2 A	264 VAC	90 VAC	IEC 320-C8	International	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	CE	-20 ░C	50 °C	9 V	Desktop (Class II)	Cord (Sold Separately)	18 W	Positive Center	1.5 m	59 in	Medical	100 mW
