Z22U Series

Catalog

ENCLOSURE STL GRAY 11.6"L X 24"W

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Container Type	Ratings	Design	Height [z]	Height [z]	Color	Area (L x W)	Area (L x W)

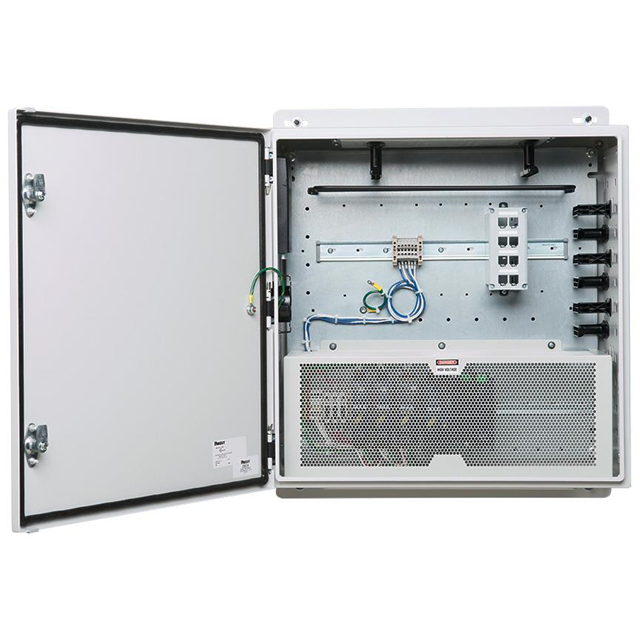

Panduit Corp Z22U-S11S	609.6 mm	294.64 mm	11.6 in	24 in	Metal Steel	Enclosure	IP66 NEMA 4X	Cover Included	609.6 mm	24 in	Gray	1796 cm˛	278 in˛

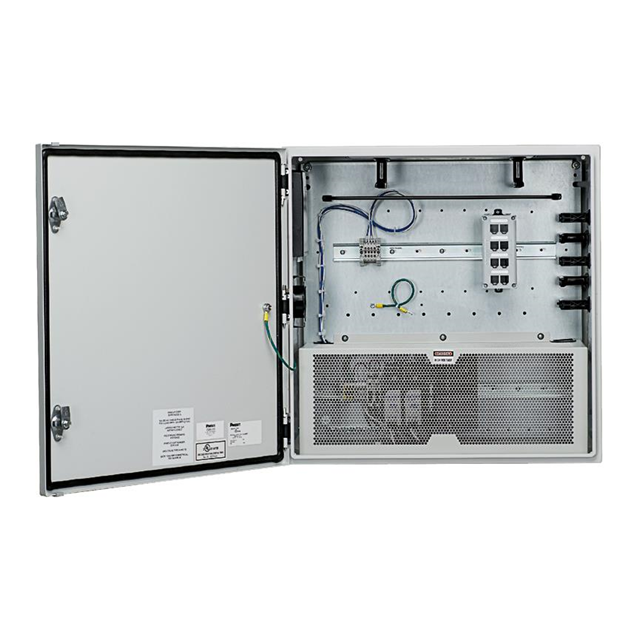

Panduit Corp Z22U-S15	294.64 mm	609.6 mm	24 in	11.6 "	Metal Steel	Enclosure	IP66 NEMA 12 NEMA 4 UL-508A	Hinged Door	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
Panduit Corp Z22U-S16S	609.6 mm	294.64 mm	11.6 in	24 in	Metal Steel	Enclosure	IP66 NEMA 4	Cover Included	609.6 mm	24 in	Gray	1796 cm˛	278 in˛

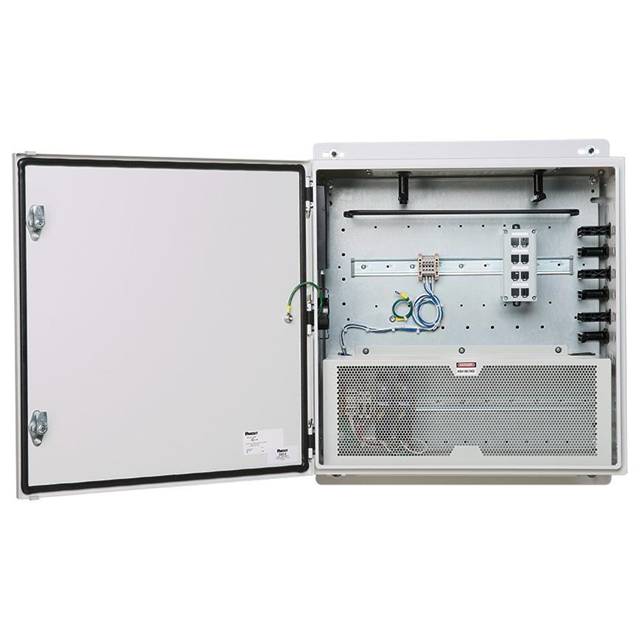

Panduit Corp Z22U-614S	609.6 mm	294.64 mm	11.6 in	24 in	Metal Stainless Steel	Enclosure	IP66 NEMA 4X	Cover Included	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
Panduit Corp Z22U-S14S	294.64 mm	609.6 mm	24 in	11.6 "	Metal Steel	Enclosure	IP66 NEMA 12 NEMA 4 UL-508A	Hinged Door	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
Panduit Corp Z22U-611	609.6 mm	294.64 mm	11.6 in	24 in	Metal Stainless Steel	Enclosure	IP66 NEMA 4X	Cover Included	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
Panduit Corp Z22U-S14	294.64 mm	609.6 mm	24 in	11.6 "	Metal Steel	Enclosure	IP66 NEMA 12 NEMA 4 UL-508A	Hinged Door	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
Panduit Corp Z22U-615S	609.6 mm	294.64 mm	11.6 in	24 in	Metal Stainless Steel	Enclosure	IP66 NEMA 4X	Cover Included	609.6 mm	24 in	Gray	1796 cm˛	278 in˛
