194012 Series

Catalog

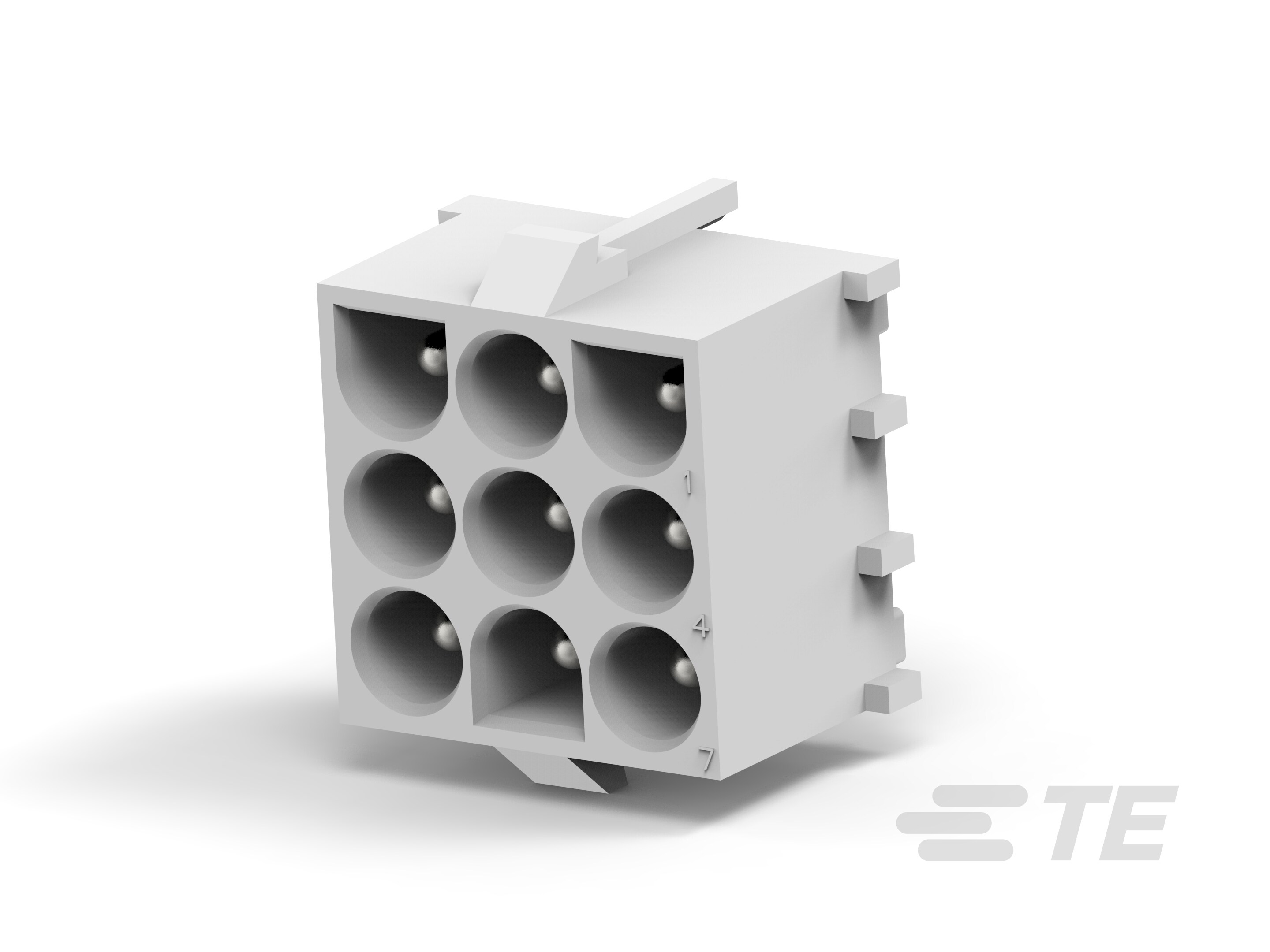

CONN SHROUDED HEADER (4 SIDES) HDR 9POWER POS 6.35MM SOLDER ST THRU-HOLE BAG

Part	Applications	Fastening Type	Termination	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Features	Contact Material	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Mating	Style	Insulation Material
TE Connectivity Raychem Cable Protection 194012-1	General Purpose	Locking Ramp	Solder	3	Header	105 ░C	-55 °C	Male Pin	0.25 in	6.35 mm	Shrouded - 4 Wall	5.08 µm	200 µin	Through Hole	Board Guide	Copper Alloy	6.35 mm	0.25 in	Circular	All	0.145 in	3.68 mm	9	0.55 in	13.97 mm	UL94 V-0	Silver	Board to Cable/Wire	Nylon Polyamide (PA)
