TSV912A-Q1 Series

Automotive-grade, dual, 5.5-V, 8-MHz, RRIO operational amplifier

Catalog

Automotive-grade, dual, 5.5-V, 8-MHz, RRIO operational amplifier

Part	Gain Bandwidth Product	Qualification	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Voltage - Supply Span (Max) [Max]	Current - Supply	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Number of Circuits	Slew Rate	Amplifier Type	-3db Bandwidth	Current - Input Bias	Current - Output / Channel	Package / Case [custom]	Package / Case	Package / Case [custom]
Texas Instruments TSV912AQDRQ1	8 MHz	AEC-Q100	Automotive	125 °C	-40 °C	8-SOIC	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	2	4.5 V/µs	General Purpose	80 kHz	5 pA	50 mA
Texas Instruments TSV912AIDGKR	8 MHz			125 °C	-40 °C		Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-MSOP 8-TSSOP			2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA	0.118 in	3 mm
Texas Instruments TSV912AIPWR	8 MHz			125 °C	-40 °C	8-TSSOP	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-TSSOP			2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA	0.173 "		4.4 mm

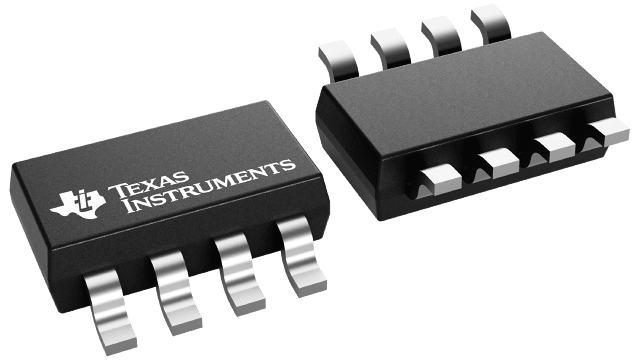

Texas Instruments TSV912AIDDFR	8 MHz			125 °C	-40 °C	TSOT-23-8	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	SOT-23-8 Thin TSOT-23-8			2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA

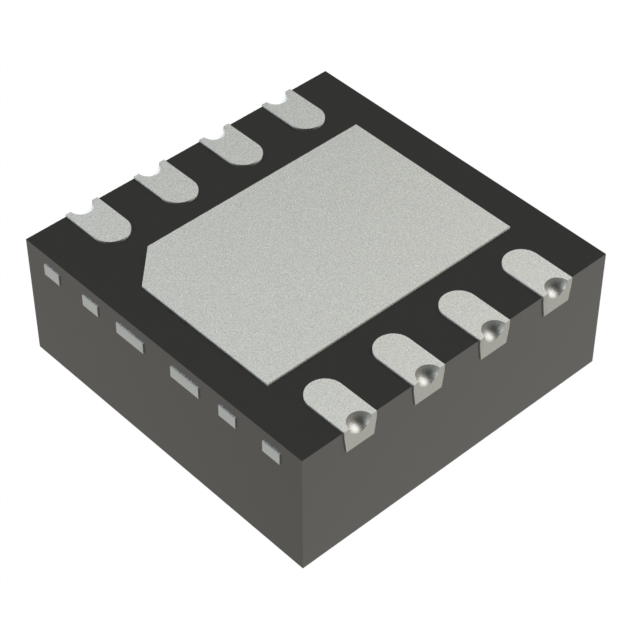

Texas Instruments TSV912AIDSGT	8 MHz			125 °C	-40 °C	8-WSON (2x2)	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-WFDFN Exposed Pad			2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA
Texas Instruments TSV912AQDGKRQ1	8 MHz	AEC-Q100	Automotive	125 °C	-40 °C		Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-MSOP 8-TSSOP			2	4.5 V/µs	General Purpose	80 kHz	5 pA	50 mA	0.118 in	3 mm
Texas Instruments TSV912AIDR	8 MHz			125 °C	-40 °C	8-SOIC	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-SOIC	3.9 mm	0.154 in	2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA
Texas Instruments TSV912AIDSGR	8 MHz			125 °C	-40 °C	8-WSON (2x2)	Rail-to-Rail	5.5 V	550 µA	1.5 mV	2.5 V	Surface Mount	8-WFDFN Exposed Pad			2	4.5 V/µs	General Purpose	80 kHz	1 pA	50 mA

Catalog

Automotive-grade, dual, 5.5-V, 8-MHz, RRIO operational amplifier

Key Features

• Rail-to-rail input and outputLow noise: 18 nV/√Hz at 1 kHzLow power consumption: 550 µA (typical)High-gain bandwidth: 8 MHzOperating supply voltage from 2.5 V to 5.5 VLow input bias current: 1 pA (typical)Low input offset voltage: 1.5 mV (maximum)Low offset voltage drift: ±0.5 µV/°C (typical)ESD internal protection: ±4-kV human-body model (HBM)Extended temperature range: –40°C to 125°CRail-to-rail input and outputLow noise: 18 nV/√Hz at 1 kHzLow power consumption: 550 µA (typical)High-gain bandwidth: 8 MHzOperating supply voltage from 2.5 V to 5.5 VLow input bias current: 1 pA (typical)Low input offset voltage: 1.5 mV (maximum)Low offset voltage drift: ±0.5 µV/°C (typical)ESD internal protection: ±4-kV human-body model (HBM)Extended temperature range: –40°C to 125°C

Description

The TSV91x family, which includes single-, dual-, and quad-channel operational amplifiers (op amps), is specifically designed for general-purpose applications. Featuring rail-to-rail input and output (RRIO) swings, wide bandwidth (8 MHz), and low offset voltage (0.3 mV, typical), this family is designed for a variety of applications that require a good balance between speed and power consumption. The op amps are unity-gain stable and feature an ultra-low input bias current, which enables the family to be used in applications with high-source impedances. The low input bias current allows the devices to be used for sensor interfaces, battery-supplied and portable applications, and active filtering. The robust design of the TSV91x provides ease-of-use to the circuit designer. Features include a unity-gain stable, integrated RFI-EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBV). The TSV91x family, which includes single-, dual-, and quad-channel operational amplifiers (op amps), is specifically designed for general-purpose applications. Featuring rail-to-rail input and output (RRIO) swings, wide bandwidth (8 MHz), and low offset voltage (0.3 mV, typical), this family is designed for a variety of applications that require a good balance between speed and power consumption. The op amps are unity-gain stable and feature an ultra-low input bias current, which enables the family to be used in applications with high-source impedances. The low input bias current allows the devices to be used for sensor interfaces, battery-supplied and portable applications, and active filtering. The robust design of the TSV91x provides ease-of-use to the circuit designer. Features include a unity-gain stable, integrated RFI-EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBV).
