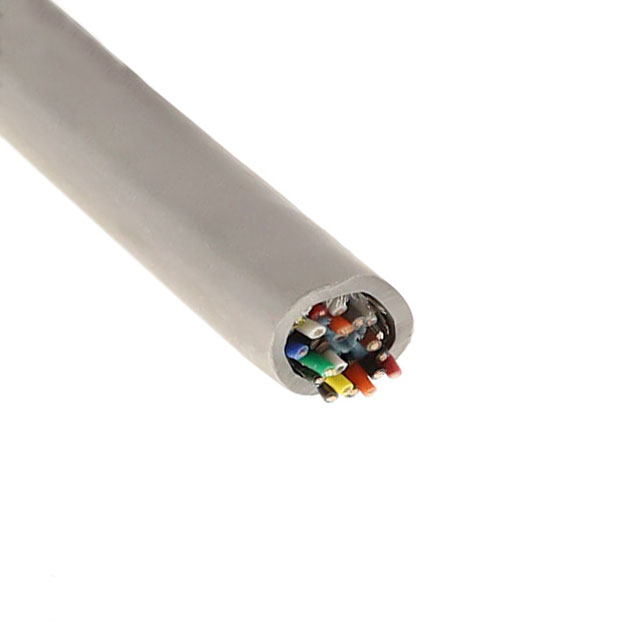

5353C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 30COND 20AWG 1000'
| Part | Shield Coverage | Shield Material | Features | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Voltage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length | Length | Shield Type | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | 28 AWG | 7 | Multi-Pair | 300 VDC | Communication Control | 15.16 mm | 0.597 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 30 | 20 AWG | -35 °C | 105 ░C | Black | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | 28 AWG | 7 | Multi-Pair | 300 VDC | Communication Control | 15.16 mm | 0.597 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 30 | 20 AWG | -35 °C | 105 ░C | Slate | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | 28 AWG | 7 | Multi-Pair | 300 VDC | Communication Control | 15.16 mm | 0.597 in | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 30 | 20 AWG | -35 °C | 105 ░C | Slate | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Biological Compatibility Drain Wire Rip Cord | ISO 10993 | 28 AWG | 7 | Multi-Pair | 300 VDC | Communication Control | 15.16 mm | 0.597 in | Poly-Vinyl Chloride (PVC) | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | 30 | 20 AWG | -35 °C | 105 ░C | Slate | 100 ft | 30.5 m |
