1877066 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

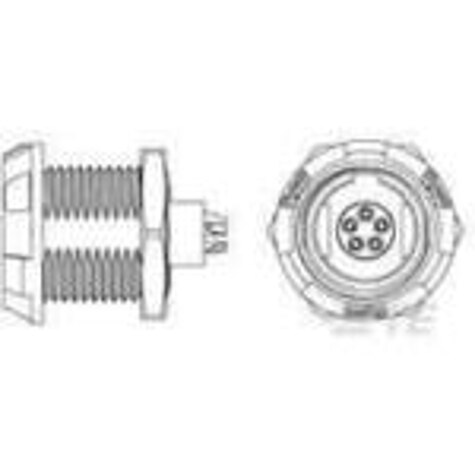

CONN RCPT FMALE 5POS SOLDER CUP
| Part | Contact Finish - Mating | Connector Type | Ingress Protection | Current Rating (Amps) | Material Flammability Rating | Voltage Rating | Fastening Type | Contact Material | Primary Material | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Applications | Shielding | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 80 ° | 29.5 Áin | 0.75 Ám | |
 TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 0 ° | 29.5 Áin | 0.75 Ám | |
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 0 ° | 29.5 Áin | 0.75 Ám | Gray Green |
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 0 ° | 29.5 Áin | 0.75 Ám | Black Blue |
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 0 ° | 29.5 Áin | 0.75 Ám | Black White |
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 80 ° | 29.5 Áin | 0.75 Ám | Gray Green |
TE Connectivity Raychem Cable Protection | Gold | Receptacle Female Sockets | IP50 | 7 A | UL94 V-0 | 300 VAC | Latch Lock | Phosphorus Bronze | Plastic | Bulkhead - Front or Rear Side Nut | -50 °C | 170 °C | Polyphenylene Sulfide (PPS) | Medical | Unshielded | 0 ° | 29.5 Áin | 0.75 Ám | Blue Gray |
