1217C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

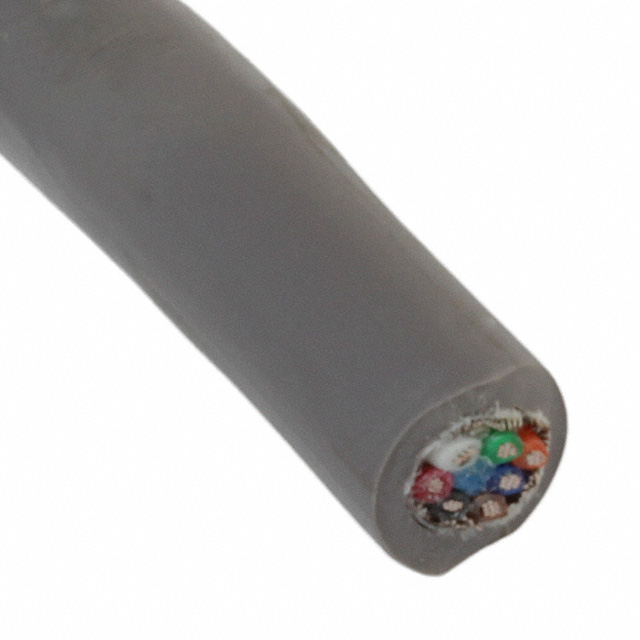

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 7 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Usage | Voltage | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Shield Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Cable Type | Conductor Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Communication Control | 300 VDC | 100 ft | 30.5 m | 80 °C | -20 ░C | 7 | Foil | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 24 AWG | Multi-Conductor | Copper Tinned | Slate | 5.11 mm | 0.201 in | Drain Wire | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | 100 % | Aluminum | Communication Control | 300 VDC | 80 °C | -20 ░C | 7 | Foil | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 24 AWG | Multi-Conductor | Copper Tinned | Slate | 5.11 mm | 0.201 in | Drain Wire | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
