LM49155 Series
Uplink noise suppression & downlink SNR enhancement analog audio subsystem
Manufacturer: Texas Instruments
Catalog
Uplink noise suppression & downlink SNR enhancement analog audio subsystem
Key Features
• Noise cancellation for uplink and downlink without DSP-type artifacts, distortions or delaysAdapting AGC on ambient noise level & downlink signal strength for earpieceDownlink adjustable noise-reducing high pass filterE2S Class D Amplifier with ALCGround Referenced Headphone Outputs with Advanced Click Pop SuppressionMicro-power shutdownNoise cancellation for uplink and downlink without DSP-type artifacts, distortions or delaysAdapting AGC on ambient noise level & downlink signal strength for earpieceDownlink adjustable noise-reducing high pass filterE2S Class D Amplifier with ALCGround Referenced Headphone Outputs with Advanced Click Pop SuppressionMicro-power shutdown
Description
AI
The LM49155 is a fully integrated audio subsystem designed for portable handheld applications such as cellular phones. The LM49155 combines a Noise Suppression microphone amplifier, a 1.35W mono class D amplifier with ALC, class AB earpiece driver with AGC, a high efficiency, stereo, ground referenced headphone amplifier with click pop suppression and I2C modes select and volume control.
The LM49155 features analog fully differential input, and differential output microphone amplifier designed to reduce background acoustic noise, while delivering superb speech clarity in voice communication applications. Downlink SNR enhancement with an advanced acoustic AGC technology to adjust output levels.
The LM49155 speaker amplifier features National’s unique output limiter that provides both a no-clip feature and speaker protection. The E2S class D amplifier features a patented, ultra low EMI PWM architecture that significantly reduces RF emissions while preserving audio quality and efficiency. The headphone drivers feature National’s ground referenced architecture that creates a ground-referenced output from a single, low-voltage supply.

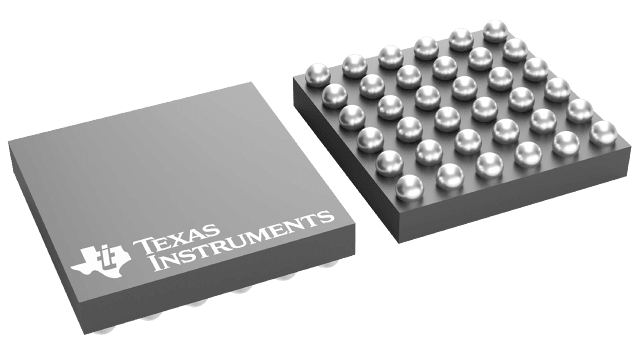

The LM49155 is available in an ultra-small 36-bump micro SMD package (3.434mm x 3.459mm x 0.6mm).
Notice: This document is not a full datasheet. For more information regarding this product or to order samples please contact your local National Semiconductor sales office or visit http://www.national.com/support/dir.html
The LM49155 is a fully integrated audio subsystem designed for portable handheld applications such as cellular phones. The LM49155 combines a Noise Suppression microphone amplifier, a 1.35W mono class D amplifier with ALC, class AB earpiece driver with AGC, a high efficiency, stereo, ground referenced headphone amplifier with click pop suppression and I2C modes select and volume control.
The LM49155 features analog fully differential input, and differential output microphone amplifier designed to reduce background acoustic noise, while delivering superb speech clarity in voice communication applications. Downlink SNR enhancement with an advanced acoustic AGC technology to adjust output levels.
The LM49155 speaker amplifier features National’s unique output limiter that provides both a no-clip feature and speaker protection. The E2S class D amplifier features a patented, ultra low EMI PWM architecture that significantly reduces RF emissions while preserving audio quality and efficiency. The headphone drivers feature National’s ground referenced architecture that creates a ground-referenced output from a single, low-voltage supply.
The LM49155 is available in an ultra-small 36-bump micro SMD package (3.434mm x 3.459mm x 0.6mm).
Notice: This document is not a full datasheet. For more information regarding this product or to order samples please contact your local National Semiconductor sales office or visit http://www.national.com/support/dir.html
