MOC3163M Series

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Part	Voltage - Off State	Number of Channels	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Mounting Type	Current - Hold (Ih)	Package / Case	Output Type	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Static dV/dt (Min) [Min]	Voltage - Forward (Vf) (Typ)	Approval Agency	Package / Case	Package / Case	Package / Case
ON Semiconductor MOC3163FR2M	600 V	1	6-SMD	60 mA	Surface Mount	500 µA	6-SMD Gull Wing	Triac	5 mA	7500 Vpk
ON Semiconductor MOC3163M	600 V	1	6-DIP	60 mA	Through Hole	500 µA	6-DIP	Triac	5 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	UL	0.3 in	7.62 mm
ON Semiconductor MOC3163FR2VM	600 V	1	6-SMD	60 mA	Surface Mount	500 µA	6-SMD Gull Wing	Triac	5 mA	7500 Vpk
ON Semiconductor MOC3162TVM	600 V	1	6-DIP	60 mA	Through Hole	500 µA	6-DIP	Triac	10 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	IEC/EN/DIN UL		10.16 mm	10.16 mm
ON Semiconductor MOC3163FM	600 V	1	6-SMD	60 mA	Surface Mount	500 µA	6-SMD Gull Wing	Triac	5 mA	7500 Vpk

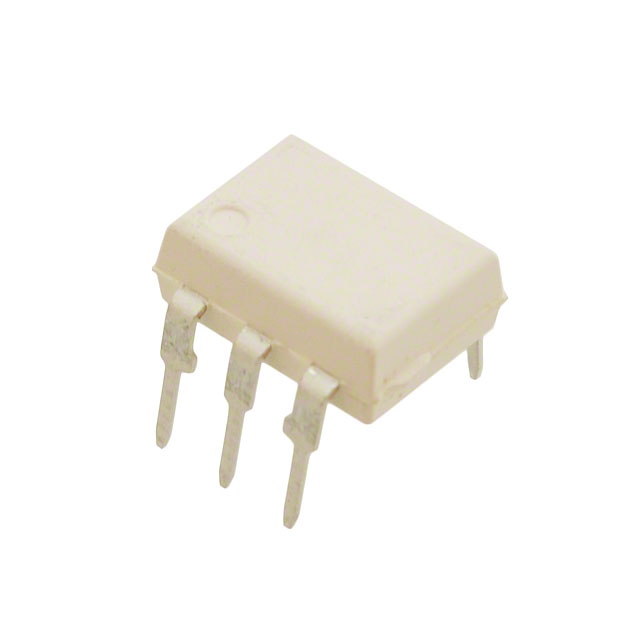

ON Semiconductor MOC3162M	600 V	1	6-DIP	60 mA	Through Hole	500 µA	6-DIP	Triac	10 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	UL	0.3 in	7.62 mm
ON Semiconductor MOC3162SR2M	600 V	1	6-SMD	60 mA	Surface Mount	500 µA	6-SMD Gull Wing	Triac	10 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	UL
ON Semiconductor MOC3162VM	600 V	1	6-DIP	60 mA	Through Hole	500 µA	6-DIP	Triac	10 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	IEC/EN/DIN UL	0.3 in	7.62 mm
ON Semiconductor MOC3163SM	600 V	1	6-SMD	60 mA	Surface Mount	500 µA	6-SMD Gull Wing	Triac	5 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	UL
ON Semiconductor MOC3163TVM	600 V	1	6-DIP	60 mA	Through Hole	500 µA	6-DIP	Triac	5 mA	4170 Vrms	85 °C	-40 °C	1 kV/µs	1.3 V	IEC/EN/DIN UL		10.16 mm	10.16 mm

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Key Features

• Simplifies Logic Control of 115/240 VAC Power

• Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise

• 600 V Peak Blocking Voltage

• Superior Static dv/dt

• 600 V/μs (MOC306xM)

• 1000 V/μs (MOC316xM)

• Safety and Regulatory Approvals

• UL1577, 4,170 VACRMSfor 1 Minute

• DIN EN/IEC60747-5-5

Description

The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.
