317-93 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN SKT SNG
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Contact Material - Mating | Pitch - Post | Pitch - Post | Housing Material | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [y] | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material - Post | Contact Finish - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | 12 | 12 | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | ||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | 10 | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 10 | ||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | 13 | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 13 | ||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | |||||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 11 | 1 | 11 | ||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 16 | 1 x 16 | |||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 9 | ||||||||

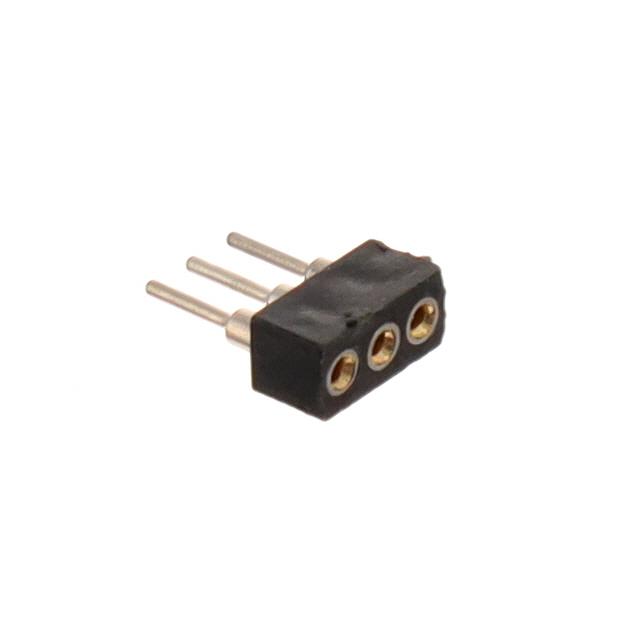

 Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead | 3 (1 x 3) | ||||||||
Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | UL94 V-0 | 3 A | 10 mOhm | Beryllium Copper | 0.07 in | 1.78 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | 18 | 18 | Through Hole | Solder | -55 C | 125 °C | Gold | 200 µin | 5.08 µm | SIP | 0.07 in | 1.78 mm | 0.76 Ám | 30 Áin | Brass Alloy | Tin-Lead |
