8134 Series
Manufacturer: Belden Inc.
Beta
⌘K

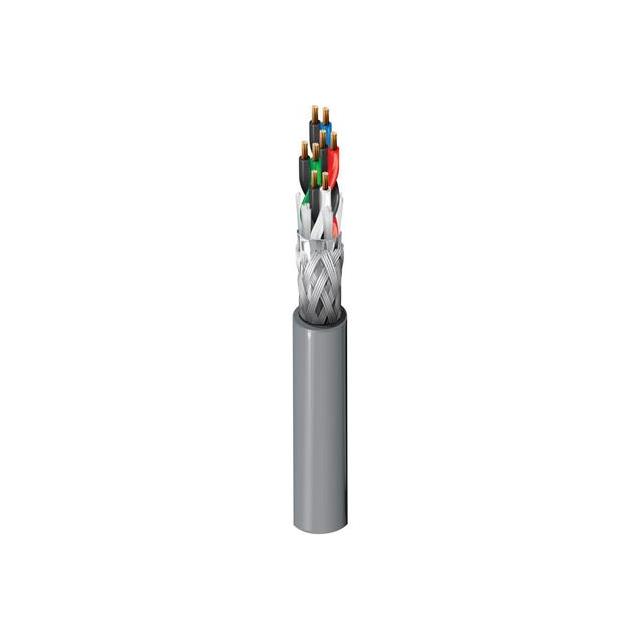

MULTI-PAIR 8CON 28AWG CHROM
| Part | Shield Material | Shield Coverage | Number of Conductors | Conductor Insulation | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Ratings | Length | Length | Cable Type | Jacket (Insulation) Material | Features | Usage | Wire Gauge | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 8 | Foam Polyethylene (FPE) | Chrome | 7.26 mm | 0.286 in | 7 | 36 AWG | 80 °C | -30 ░C | Braid Foil | UL Style 2919 | 152.4 m | 500 ft | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire | Computer | 28 AWG | Copper Tinned |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 8 | Foam Polyethylene (FPE) | Chrome | 7.26 mm | 0.286 in | 7 | 36 AWG | 80 °C | -30 ░C | Braid Foil | UL Style 2919 | 304.8 m | 1000 ft | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire | Computer | 28 AWG | Copper Tinned |
