RGT16TM65D Series

5µs Short-Circuit Tolerance, 650V 8A, FRD Built-in, TO-220NFM, Field Stop Trench IGBT

Catalog

5µs Short-Circuit Tolerance, 650V 8A, FRD Built-in, TO-220NFM, Field Stop Trench IGBT

Part	Reverse Recovery Time (trr)	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	IGBT Type	Gate Charge	Package / Case	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Test Condition	Mounting Type	Supplier Device Package

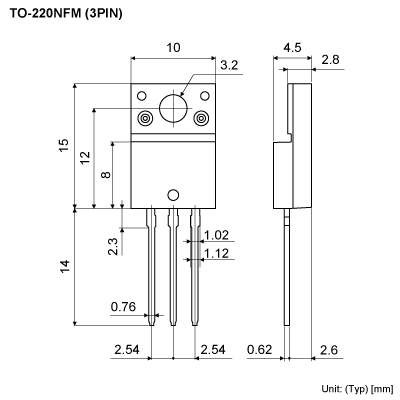

Rohm Semiconductor RGT16TM65DGC9	42 ns	650 V	9 A	175 °C	-40 °C	33 ns	13 ns	Trench Field Stop	21 nC	TO-220-3 Full Pack	22 W	2.1 V	8 A 10 Ohm 15 V 400 V	Through Hole	TO-220NFM

Catalog

5µs Short-Circuit Tolerance, 650V 8A, FRD Built-in, TO-220NFM, Field Stop Trench IGBT

Description

RGT16TM65D is a Field Stop Trench IGBT with low collector - emitter saturation voltage, suitable for General Inverter, UPS, Power Conditioner, Welder.
