DKLL Series

Catalog

CMC 4A 3LN TH

Part	Mounting Type	Package / Case	Number of Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Max) [Max]

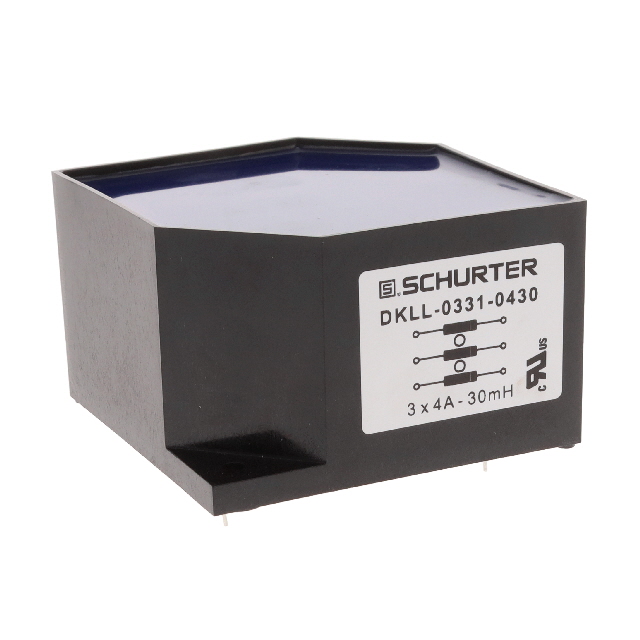

SCHURTER Inc. DKLL-0331-0430	Through Hole	Nonstandard	3	80 mm	3.15 "	80 mm	3.15 in	155 mOhm	540 V	100 °C	-25 °C	760 V	4 A

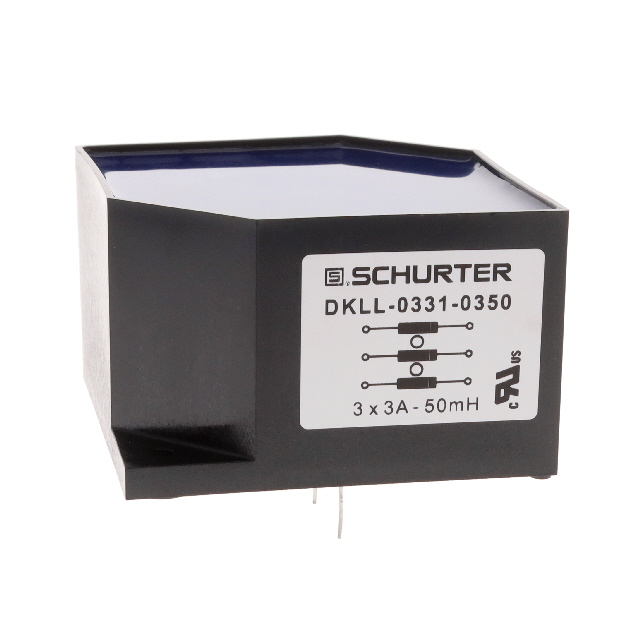

SCHURTER Inc. DKLL-0331-0350	Through Hole	Nonstandard	3	80 mm	3.15 "	80 mm	3.15 in	260 mOhm	540 V	100 °C	-25 °C	760 V	3 A
SCHURTER Inc. DKLL-0346-0330	Through Hole	Nonstandard	3	50 mm	1.969 "	50 mm	1.969 in	130 mOhm	540 V	100 °C	-25 °C	760 V	3 A
SCHURTER Inc. DKLL-0331-0520	Through Hole	Nonstandard	3	80 mm	3.15 "	80 mm	3.15 in	100 mOhm	540 V	100 °C	-25 °C	760 V	5 A

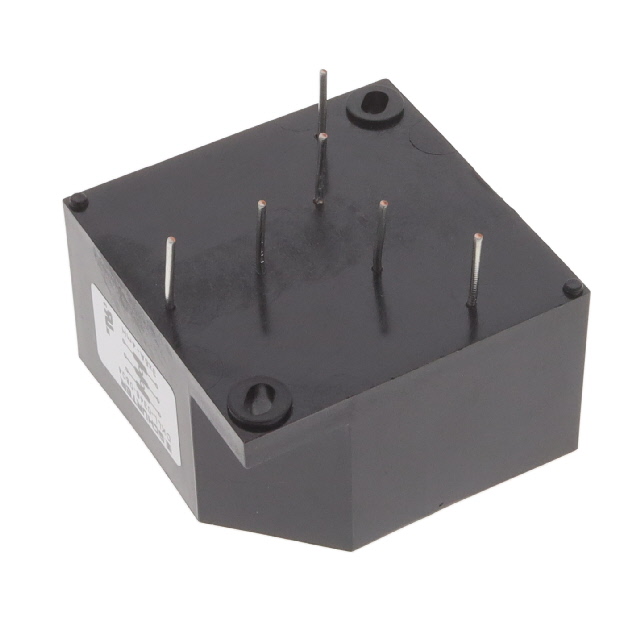

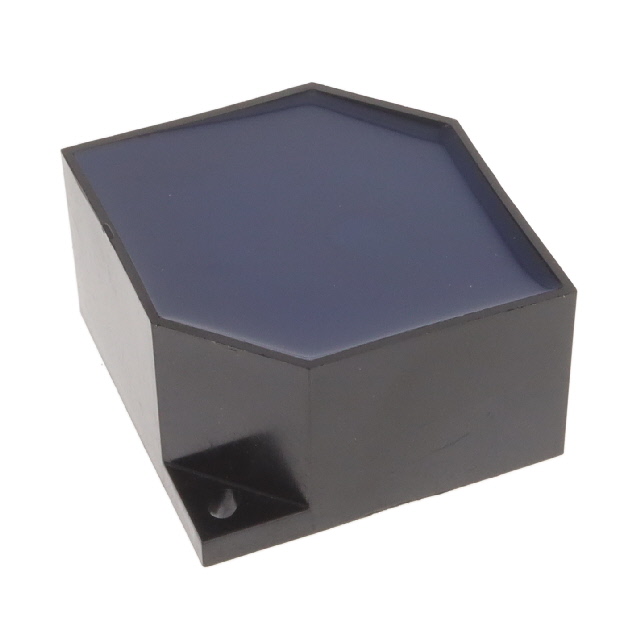

SCHURTER Inc. DKLL-0346-0804	Through Hole	Nonstandard	3	50 mm	1.969 "	50 mm	1.969 in	22 mOhm	540 V	100 °C	-25 °C	760 V	8 A
