TL6700 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Actuator Material	Actuator Orientation	Illumination	Contact Rating @ Voltage	Outline [y]	Outline [x]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Features	Actuator Height off PCB, Vertical	Mounting Type	Operating Force	Circuit	Termination Style	Actuator Type	Actuator Height off PCB, Vertical [z]

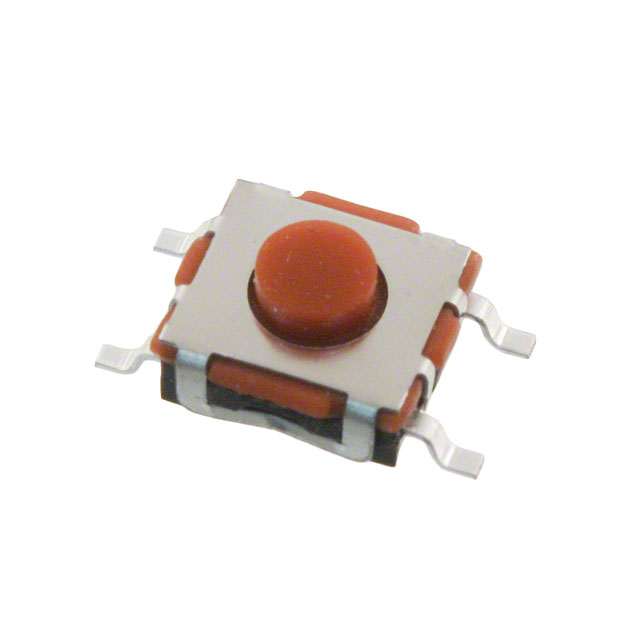

E-Switch TL6700AF260QG	100000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed	3.4 mm	Surface Mount	260 gf	SPST-NO	Gull Wing	Standard

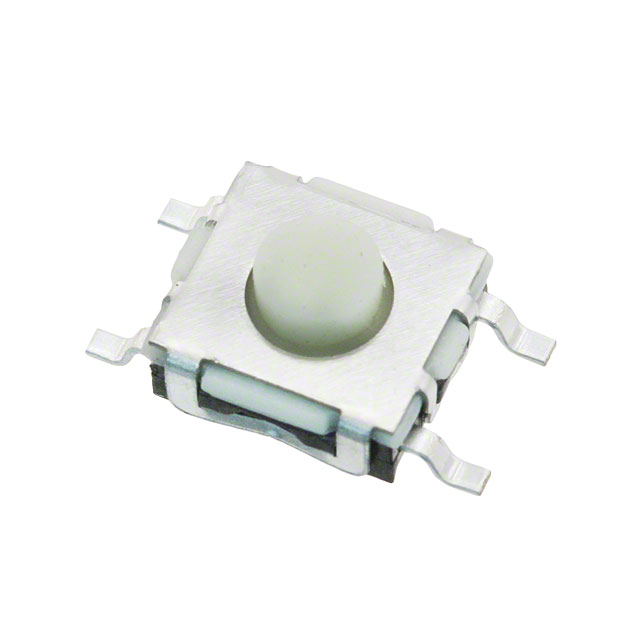

E-Switch TL6700AF160QG	500000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed	3.4 mm	Surface Mount	160 gf	SPST-NO	Gull Wing	Standard

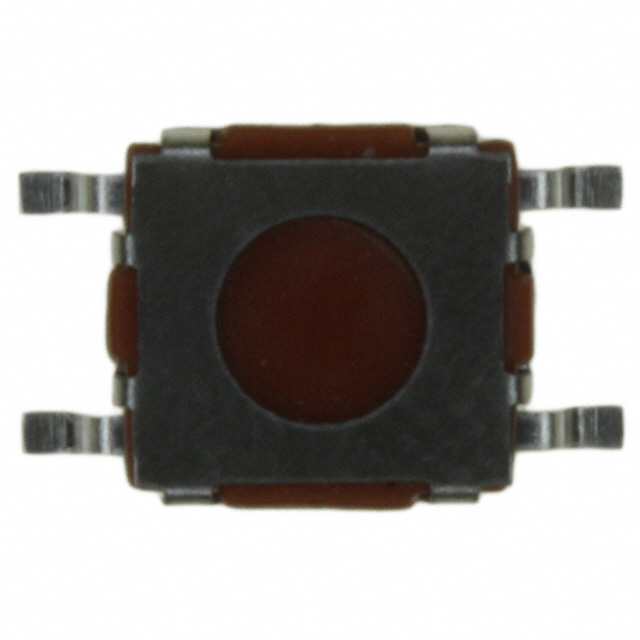

E-Switch TL6700NF260QG	100000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed		Surface Mount	260 gf	SPST-NO	Gull Wing	Flush	2.6 mm

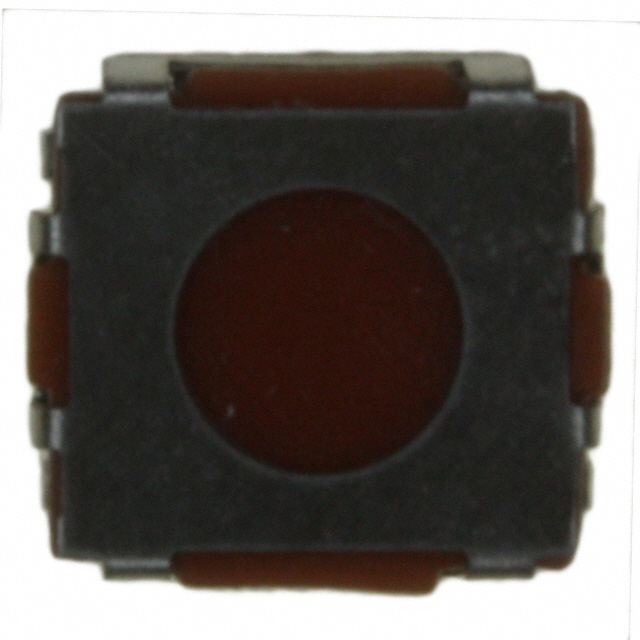

E-Switch TL6700NF260QJ	100000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed		Surface Mount	260 gf	SPST-NO	J Lead	Flush	2.6 mm

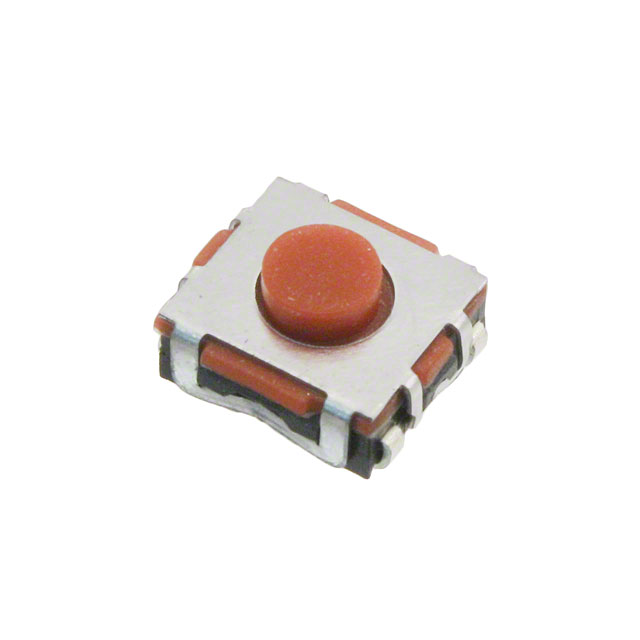

E-Switch TL6700AF260QJ	100000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed	3.4 mm	Surface Mount	260 gf	SPST-NO	J Lead	Standard

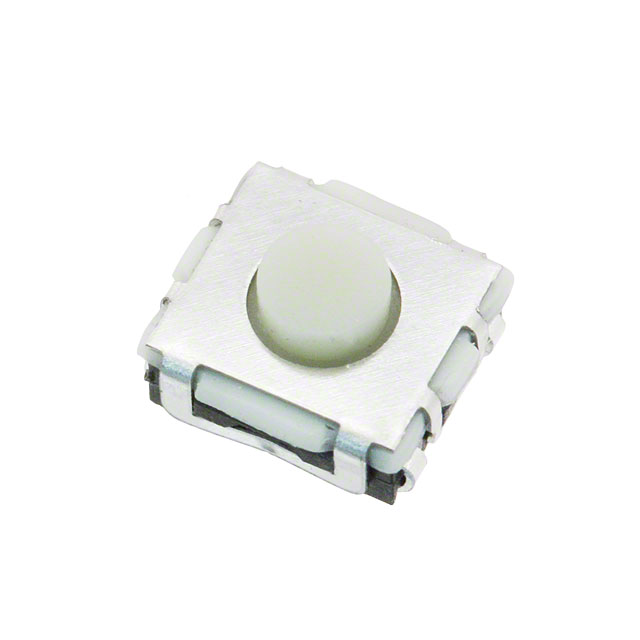

E-Switch TL6700AF160QJ	500000 Cycles	0.35 mm	Silicone Rubber	Top Actuated	Non-Illuminated	0.05 A 12 VDC	6.2 mm	6.9 mm	-20 ░C	70 °C	Off-Mom	Process Sealed	3.4 mm	Surface Mount	160 gf	SPST-NO	J Lead	Standard
