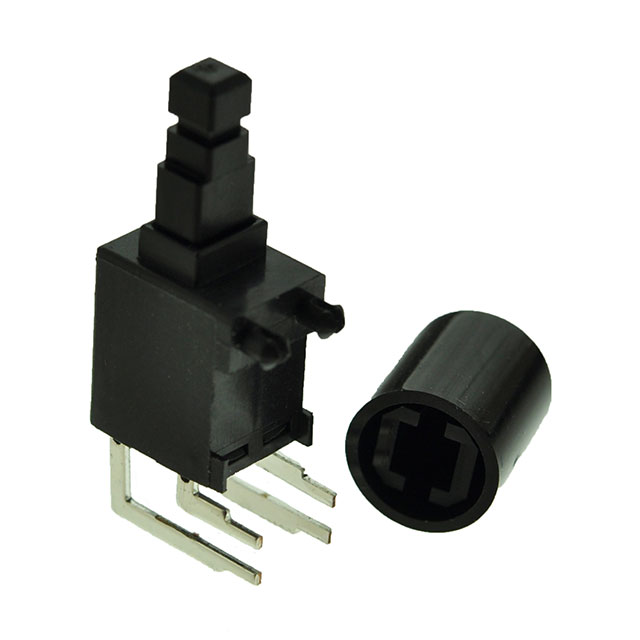

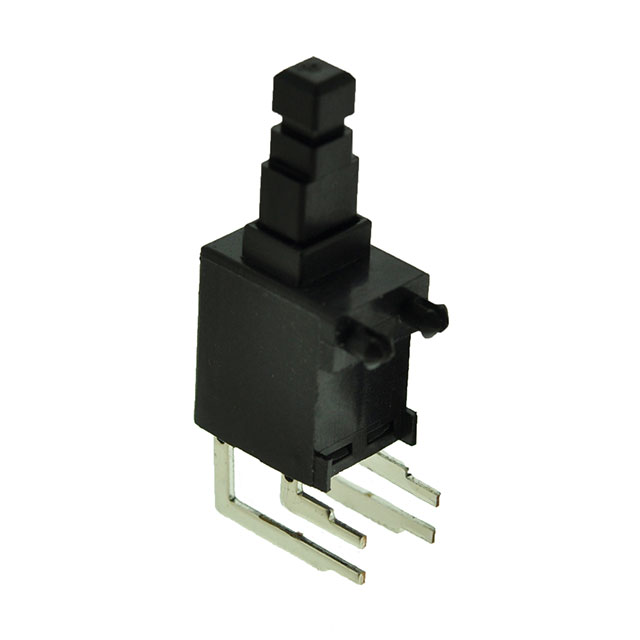

PB400 Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES PUSHBUTTON, 3A 30VDC, DPST OFF-(ON), THROUGH HOLE, RIGHT ANGLE PC PIN
| Part | Electrical Life | Switch Function | Actuator Marking | Circuit | Current Rating (Amps) | Type | Voltage Rating - DC | Mounting Type | Termination Style | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Color | Illumination | Size [diameter] | Size [z] | Shape | Switch Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | Off-Mom | No Marking | DPST-NO | 3 A | Standard | 30 V | Right Angle Through Hole | PC Pin | Plunger for Cap | 60 °C | -5 °C | ||||||||
 E-Switch | 6000 Cycles | Off-On | No Marking | DPST | 3 A | Standard | 30 V | Right Angle Through Hole | PC Pin | Button Round | 60 °C | -5 °C | Black | |||||||
 E-Switch | Snap Fit | Black | Non-Illuminated | 8.8 mm | 10.5 mm | Round | Pushbutton | PB400 Series | ||||||||||||
E-Switch | 6000 Cycles | Off-On | No Marking | DPST | 3 A | Standard | 30 V | Right Angle Through Hole | PC Pin | Plunger for Cap | 60 °C | -5 °C | ||||||||
 E-Switch | Off-Mom | No Marking | DPST-NO | 3 A | Standard | 30 V | Right Angle Through Hole | PC Pin | Button Round | 60 °C | -5 °C | Black |
