Pan-Ty Series

Catalog

*PAN-TY*EXTRA HEAVY - RELEASABLE CABLE TIES ROHS COMPLIANT: YES

Part	Tensile Strength	Tensile Strength	Color	Shelf Life	Material	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type	Shelf Life Start	Wire/Cable Tie Type	Length - Approximate	Width	Width	Length - Actual [x]	Length - Actual	Width [x]	Width [x]	Length - Actual	Length - Actual	Features	Length - Actual [x]	Length - Actual [x]	Length - Approximate [x]
Panduit Corp PRT5EH-C	250 lbs	113.4 kg	Natural	48 Months	Polyamide (PA66) Nylon 6/6	5 in	127 mm	Free Hanging (In-Line)	Date of Manufacture	Lashing Releasable	20 in	12.7 mm	0.5 in	1.677 '	511 mm

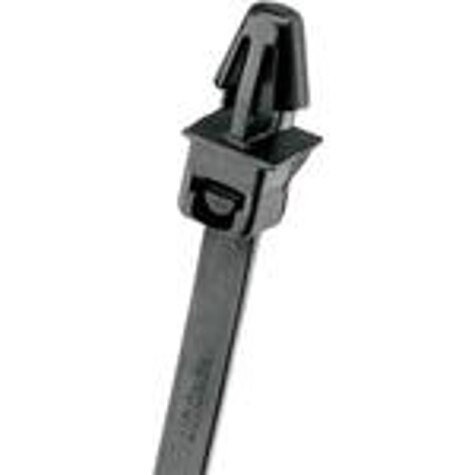

Panduit Corp PLP2S-M30	50 lbs	22.68 kg	Black	48 Months	Polyamide (PA66) Nylon 6/6	1.75 in	44.45 mm	Arrowhead Push Mount	Date of Manufacture	Locking Standard	8 in				200.66 mm	0.19 in	4.83 mm	7.9 in	0.658 ft	Heat Stabilized
Panduit Corp PRT4S-M	50 lbs	22.68 kg	Natural	48 Months	Polyamide (PA66) Nylon 6/6	4 in	101.6 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard	14.5 in			1.208 ft		0.19 in	4.83 mm				368.3 mm
Panduit Corp PRT3H-L0	80 lbs	36.29 kg	Black	48 Months	Polyamide (PA66) Nylon 6/6	3 in	76.2 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard	11.5 in	7.62 mm		0.95 ft		0.3 in				Weather Resistant	289.56 mm	11.4 "
Panduit Corp PRT4S-M0	50 lbs	22.68 kg	Black	48 Months	Polyamide (PA66) Nylon 6/6	4 in	101.6 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard	14.5 in			1.208 ft		0.19 in	4.83 mm			Weather Resistant	368.3 mm
Panduit Corp PRT1.5S-C	50 lbs	22.68 kg	Natural	48 Months	Polyamide (PA66) Nylon 6/6	1.5 in	38.1 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard					160 mm	0.19 in	4.83 mm	6.3 in	0.525 ft	Plenum Rated			6.25 "
Panduit Corp PRT1S-M0	50 lbs	22.68 kg	Black	48 Months	Polyamide (PA66) Nylon 6/6	1 in	25.4 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard				0.4 ft		0.19 in	4.83 mm			Weather Resistant	121.92 mm	4.8 "	4.75 in
Panduit Corp PRT10EH-C	250 lbs	113.4 kg	Natural	48 Months	Polyamide (PA66) Nylon 6/6	10 in	254 mm	Free Hanging (In-Line)	Date of Manufacture	Lashing Releasable	34.25 in	12.7 mm	0.5 in	2.85 '	868.68 mm
Panduit Corp PRT12EH-Q0	250 lbs	113.4 kg	Black	48 Months	Polyamide (PA66) Nylon 6/6	12 in	304.8 mm	Free Hanging (In-Line)	Date of Manufacture	Lashing Releasable	40 in	12.7 mm	0.5 in	3.34 ft						Weather Resistant	1.02 m
Panduit Corp PRT1S-M	50 lbs	22.68 kg	Natural	48 Months	Polyamide (PA66) Nylon 6/6	1 in	25.4 mm	Free Hanging (In-Line)	Date of Manufacture	Releasable Standard				0.4 ft		0.19 in	4.83 mm				121.92 mm	4.8 "	4.75 in
