QFR1224 Series
Manufacturer: Delta Electronics
Beta
⌘K

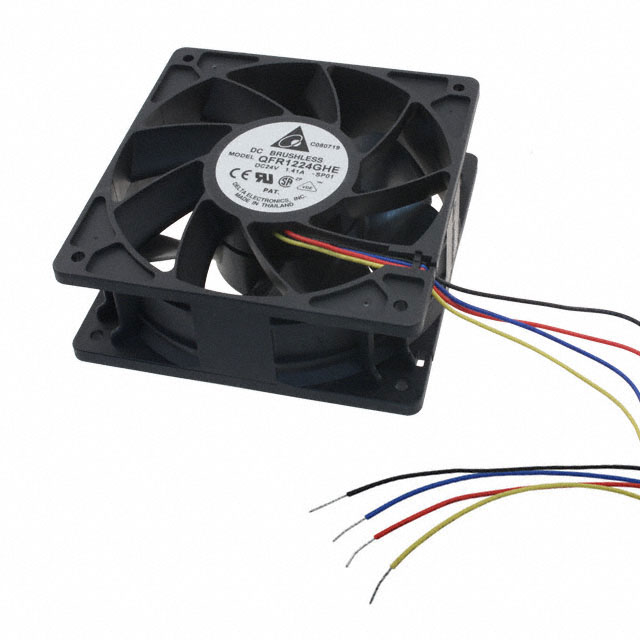

FAN AXIAL 120X38MM 24VDC WIRE
| Part | Material - Blade | Material - Frame | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Air Flow | Air Flow | Features | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Termination | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Bearing Type | Width [y] | Weight [custom] | Weight [custom] | Voltage - Rated | Fan Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 40 °C 50000 Hrs | 26.4 VDC | 16 VDC | 0.94 A | 5.89 m³/min | 210.4 CFM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 22.56 W | CE CSA UL VDE | 120 mm | 120 mm | 4 Wire Leads | 64 dB(A) | -10 °C | 60 °C | 1.17 in H2O | 291.4 Pa | Ball | 38 mm | 0.728 lb | 330.22 g | 24 VDC | Tubeaxial | 6000 RPM |
