ECA-1AM Series

Manufacturer: Panasonic Electronic Components

Catalog

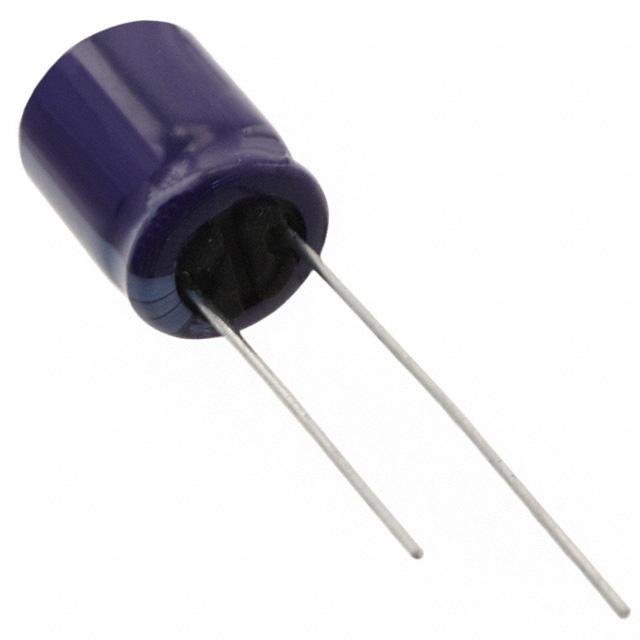

ELECTROLYTIC CAPACITOR, M SERIES, 330 ΜF, 10 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 85°C, POLAR

Part	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max)	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Mounting Type	Package / Case	Ripple Current @ Low Frequency	Capacitance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Panasonic Electronic Components ECA-1AM331	561 mA	0.248 "	6.3 mm	Polar	2.5 mm	0.098 in	General Purpose	12.2 mm	0.48 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial	330 mA	330 µF	20 %

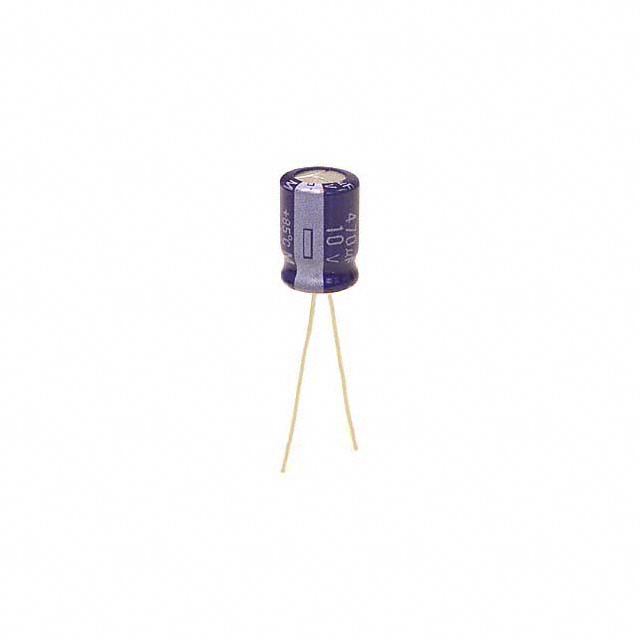

Panasonic Electronic Components ECA-1AM471B	680 mA	0.315 in	8 mm	Polar	5 mm	0.197 "	General Purpose			2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial		470 µF	20 %	0.492 in	12.5 mm
Panasonic Electronic Components ECA-1AM331B	561 mA	0.248 "	6.3 mm	Polar	5 mm	0.197 "	General Purpose	12.2 mm	0.48 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial	330 mA	330 µF	20 %

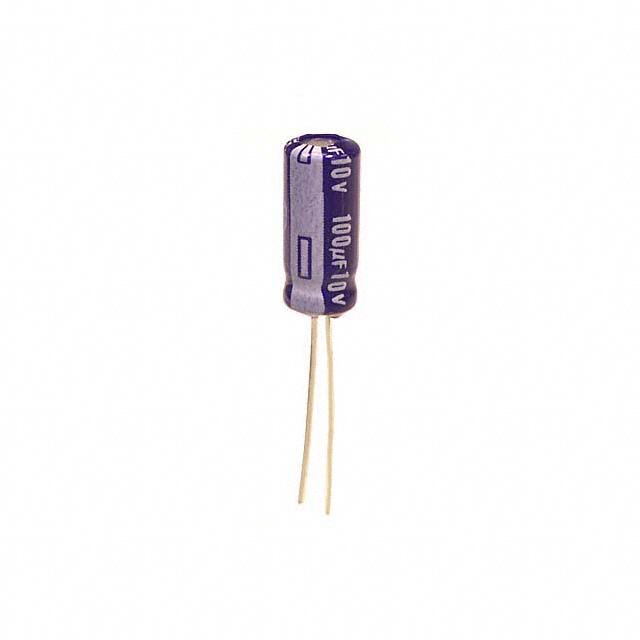

Panasonic Electronic Components ECA-1AM101	255 mA	0.197 in	5 mm	Polar	2 mm	0.079 in	General Purpose	12 mm	0.472 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial		100 µF	20 %

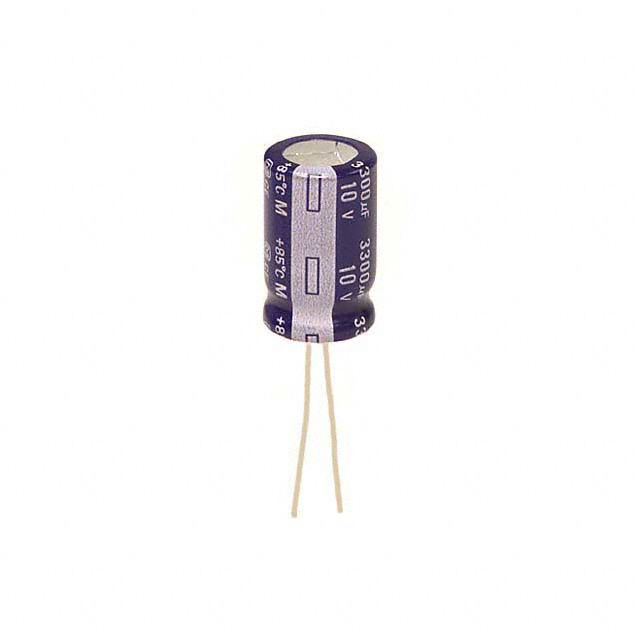

Panasonic Electronic Components ECA-1AM332	1.853 A	0.492 in	12.5 mm	Polar	5 mm	0.197 "	General Purpose			2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial	1.09 A	3.3 mF	20 %			0.866 in	22 mm
Panasonic Electronic Components ECA-1AM101B	255 mA	0.197 in	5 mm	Polar	5 mm	0.197 "	General Purpose	12 mm	0.472 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial		100 µF	20 %

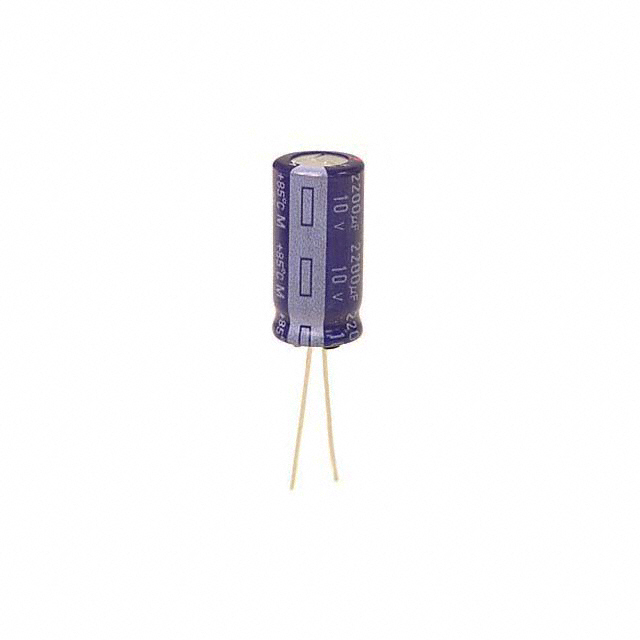

Panasonic Electronic Components ECA-1AM222B	1.564 A	0.394 in	10 mm	Polar	5 mm	0.197 "	General Purpose			2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial	920 mA	2200 µF	20 %			0.866 in	22 mm
Panasonic Electronic Components ECA-1AM471BJ	680 mA	0.315 in	8 mm	Polar	3.5 mm	0.138 in	General Purpose	12.2 mm	0.48 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial		470 µF	20 %
Panasonic Electronic Components ECA-1AM682	2.38 A	0.63 in	16 mm	Polar	7.5 mm	0.295 in	General Purpose		1.063 in	2000 Hrs	85 °C	-40 C	10 V	Through Hole	Can Radial	1.4 A	6800 µF	20 %	27 mm
Panasonic Electronic Components ECA-1AM332
