98401 Series

Catalog

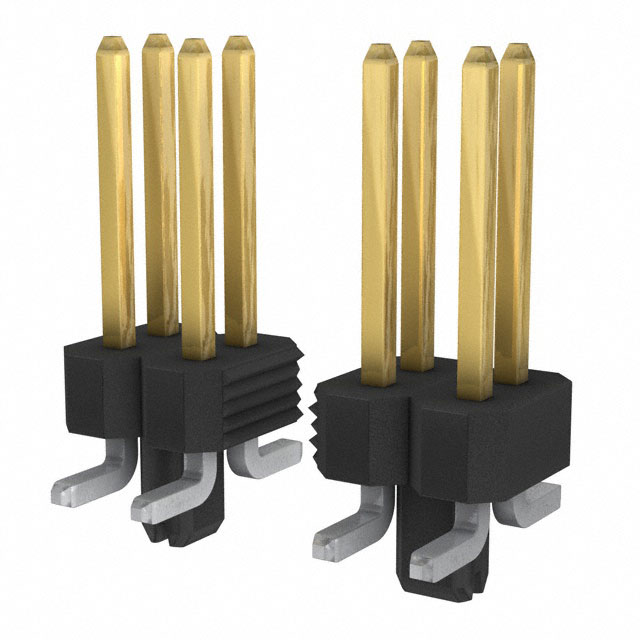

CONN HEADER SMD 48POS 2.54MM

Part	Insulation Color	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Contact Material	Termination	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Fastening Type	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]
Amphenol ICC (FCI) 98401-102-48LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.318 "	8.08 mm	Board Guide	Push-Pull	Tin	Gold GXT™	-65 ░C	130 °C	30 Áin	0.76 Ám	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	48
Amphenol ICC (FCI) 98401-801-30LF	Black	Unshrouded	3.81 Ám	150 Áin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.23 in		Board Guide	Push-Pull	Tin-Lead	Gold GXT™	-65 ░C	130 °C	15 µin	0.38 µm	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	30	5.84 mm
Amphenol ICC (FCI) 98401-801-18LF	Black	Unshrouded	3.81 Ám	150 Áin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.23 in		Board Guide	Push-Pull	Tin-Lead	Gold GXT™	-65 ░C	130 °C	15 µin	0.38 µm	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	18	5.84 mm
Amphenol ICC (FCI) 98401-101-30LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.23 in		Board Guide	Push-Pull	Tin	Gold GXT™	-65 ░C	130 °C	30 Áin	0.76 Ám	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	30	5.84 mm
Amphenol ICC (FCI) 98401-102A08LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.318 "	8.08 mm	Board Guide Pick and Place	Push-Pull	Tin	Gold GXT™	-65 ░C	130 °C	30 Áin	0.76 Ám	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	8
Amphenol ICC (FCI) 98401-807-54LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder			Board Guide	Push-Pull	Tin	Gold GXT™	-65 ░C	130 °C	15 µin	0.38 µm	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	54	0.571 in	14.5 mm
Amphenol ICC (FCI) 98401-102-12LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.318 "	8.08 mm	Board Guide	Push-Pull	Tin	Gold GXT™	-65 ░C	130 °C	30 Áin	0.76 Ám	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	12
Amphenol ICC (FCI) 98401-506-10LF	Black	Unshrouded	2 çm	78.7 çin	3 A	2.54 mm	0.1 in	All	Male Pin			Phosphor Bronze	Solder	0.413 "	10.5 mm	Board Guide Pick and Place	Push-Pull	Tin	Gold GXT™	-65 ░C	125 °C	10 çin	0.25 çm	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	10			2.13 mm	0.084 in
Amphenol ICC (FCI) 98401-801-20	Black	Unshrouded	3.81 Ám	150 Áin		2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.23 in		Board Guide	Push-Pull	Tin-Lead	Gold GXT™			15 µin	0.38 µm	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	20	5.84 mm
Amphenol ICC (FCI) 98401-101-14	Black	Unshrouded	3.81 Ám	150 Áin		2.54 mm	0.1 in	All	Male Pin	0.084 in	2.14 mm	Phosphor Bronze	Solder	0.23 in		Board Guide	Push-Pull	Tin-Lead	Gold GXT™			30 Áin	0.76 Ám	Breakaway Header	2	UL94 V-0	Surface Mount	0.1 in	2.54 mm	Square	Thermoplastic	14	5.84 mm
