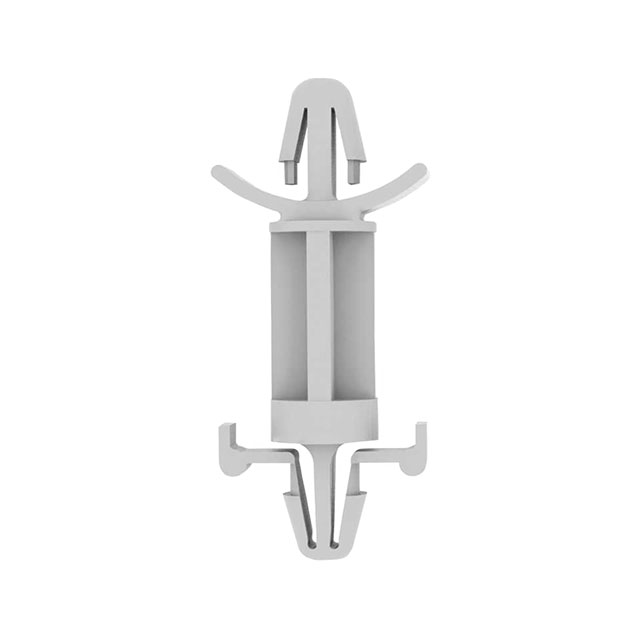

DLCBSRA3 Series

Catalog

BRD SPT SNAP LOCK NYLON 5/8"

Part	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Mounting Type	Holding Type	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Features	Between Board Height	Between Board Height	Between Board Height
Essentra Components DLCBSRA3-10-01	0.79 mm	0.031 in	0.078 "	1.98 mm	0.187 in	4.75 mm	3/16	0.1875 in	0.187 in	4.75 mm	Nylon	Snap Lock	Snap Lock	0.031 in	0.79 mm	0.078 in	1.98 mm	Releasable Reverse Mounting Winged	15.88 mm	0.625 in	5 8
Essentra Components DLCBSRA3-8-01	0.79 mm	0.031 in	0.078 "	1.98 mm	0.187 in	4.75 mm	3/16	0.1875 in	0.187 in	4.75 mm	Nylon	Snap Lock	Snap Lock	0.031 in	0.79 mm	0.078 in	1.98 mm	Releasable Reverse Mounting Winged	12.7 mm	0.5 in	0.5 in
Essentra Components DLCBSRA3-14-01	0.79 mm	0.031 in	0.078 "	1.98 mm	0.187 in	4.75 mm	3/16	0.1875 in	0.187 in	4.75 mm	Nylon	Snap Lock	Snap Lock	0.031 in	0.79 mm	0.078 in	1.98 mm	Releasable Reverse Mounting Winged	22.23 mm	0.875 in	0.875 in
