OSTHT06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

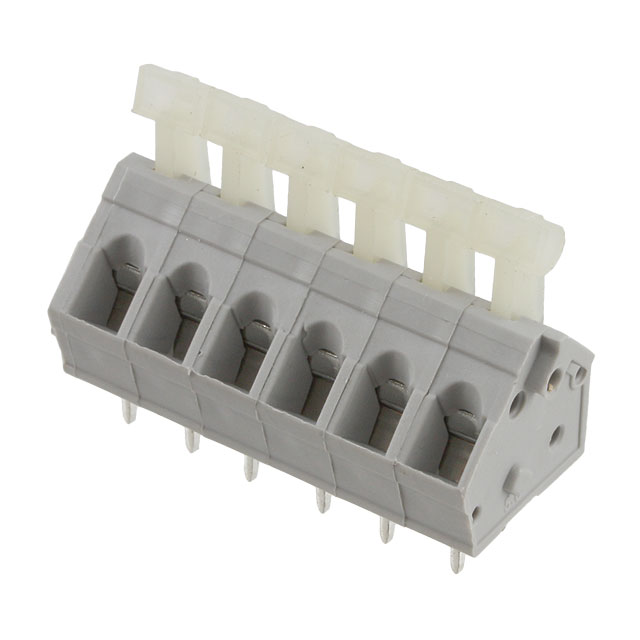

TERM BLOCK 6POS 5MM PCB
| Part | Housing Material | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Wire Gauge [Min] | Wire Gauge [Max] | Current | Mounting Type | Color | Voltage | Features | Mating Orientation | Positions Per Level | Pitch | Pitch | Wire Termination | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | Brass | -30 ░C | 105 ░C | Stainless Steel | 12 AWG | 28 AWG | 15 A | Through Hole | Gray | 300 VDC | Interlocking (Side) Lever Actuated | Angled | 6 | 0.197 in | 5 mm | Leg Spring Push-In Spring | 1 |
