ED550 Series

Catalog

TERM BLK 9P TOP ENTRY 3.5MM PCB

Part	Contact Material - Plating	Clamp Material - Plating [custom]	Housing Material	Screw Thread	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Color	Positions Per Level	Current	Number of Levels	Wire Termination	Pitch	Pitch	Voltage	Mounting Type

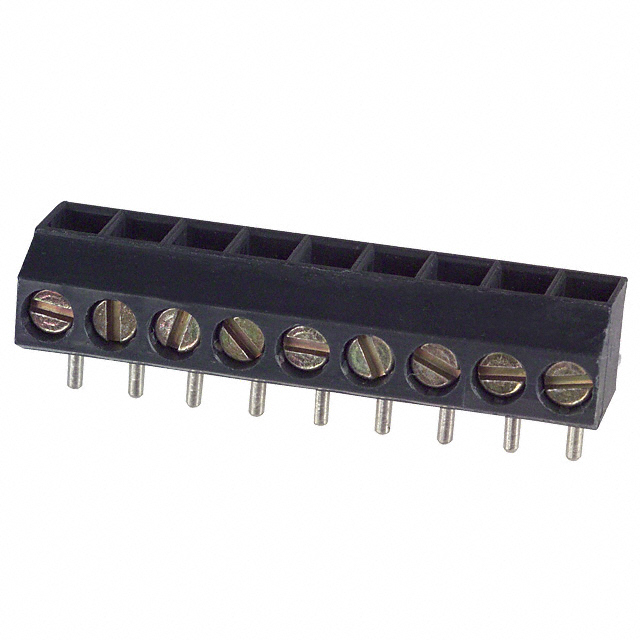

On Shore Technology Inc. ED550/9DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	9	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole

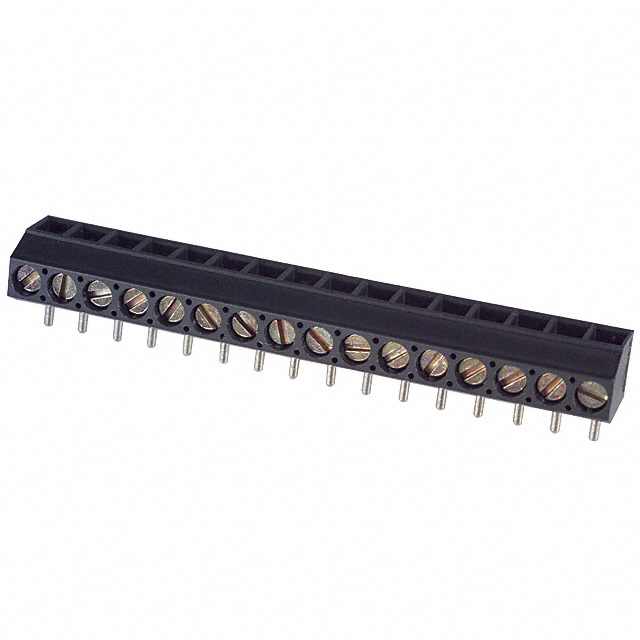

On Shore Technology Inc. ED550/16DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	16	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole

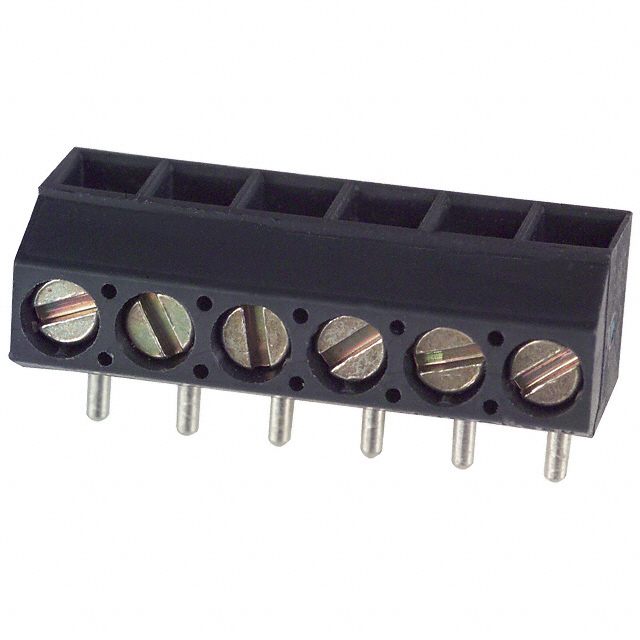

On Shore Technology Inc. ED550/6DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	6	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole

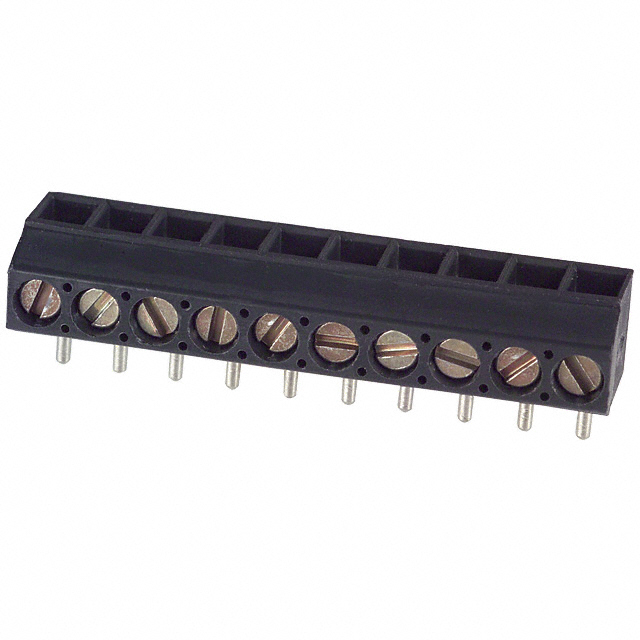

On Shore Technology Inc. ED550/10DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	10	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole

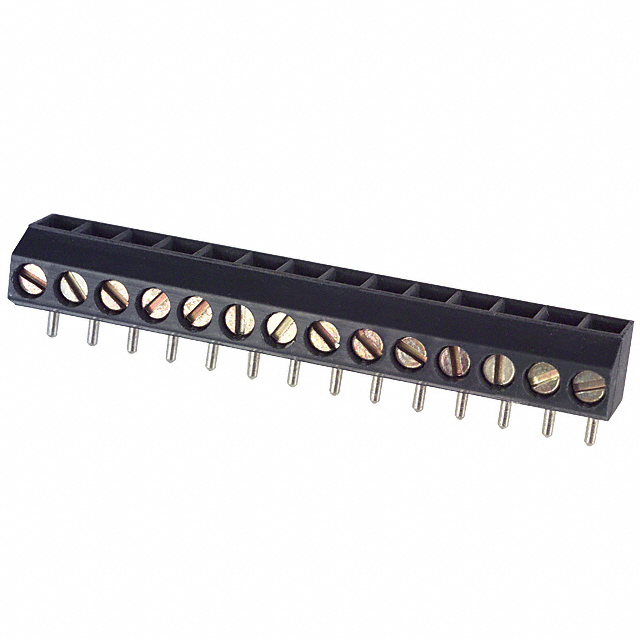

On Shore Technology Inc. ED550/14DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	14	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole

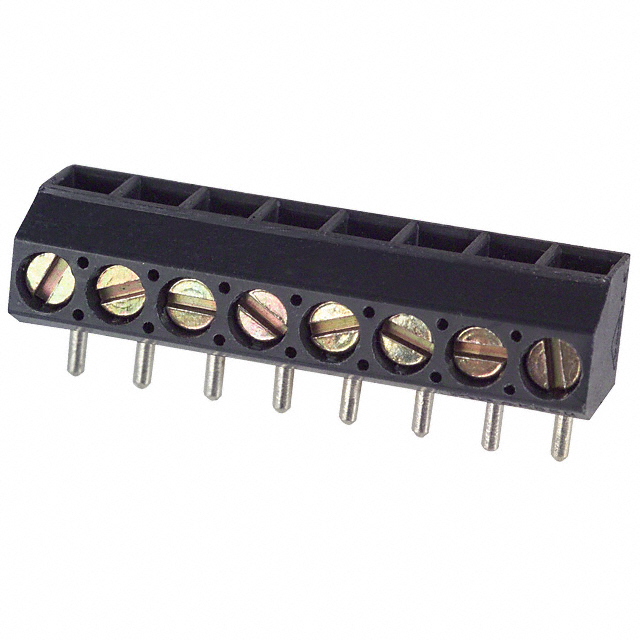

On Shore Technology Inc. ED550/8DS	Brass	Stainless Steel	Polyamide (PA) Nylon	M2	3.5 Lb-In	0.4 Nm	-30 ░C	105 ░C	Vertical with Board	28 AWG	16 AWG	Gray	8	6 A	1	Screw - Leaf Spring Wire Guard	3.5 mm	0.138 "	125 V	Through Hole
