503376 Series

SlimStack Board-to-Board Plug, 0.40mm Pitch, Surface Mount, Dual Row, Right-Angle, with Solder Tabs and Plastic Pegs, 40 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.40mm Pitch, Surface Mount, Dual Row, Right-Angle, with Solder Tabs and Plastic Pegs, 40 Circuits

Part	Pitch	Pitch	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Features	Mounting Type	Number of Positions [custom]	Height Above Board [z]	Height Above Board [z]	Number of Positions

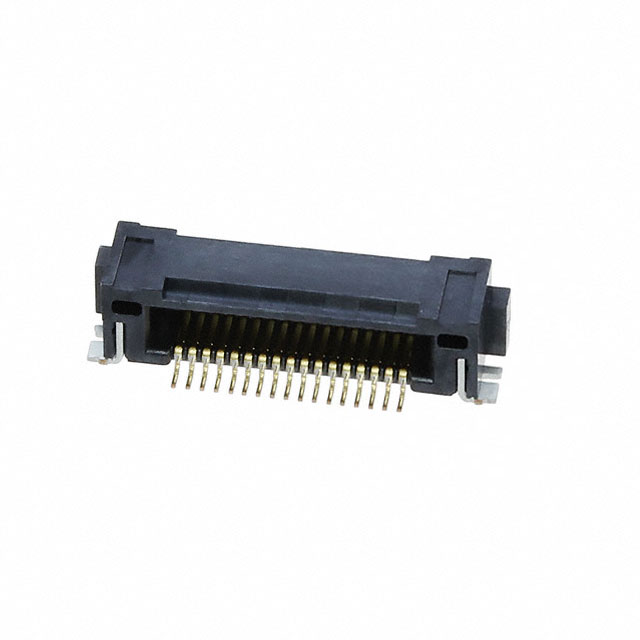

Molex 5033763410	0.4 mm	0.016 in	2	0.25 Ám	10 Áin	Gold	Plug Outer Shroud Contacts	Board Guide Solder Retention	Right Angle Surface Mount	34	0.126 in	3.2 mm
Molex 5033764010	0.4 mm	0.016 in	2	0.25 Ám	10 Áin	Gold	Plug Outer Shroud Contacts	Board Guide Solder Retention	Right Angle Surface Mount		0.126 in	3.2 mm	40

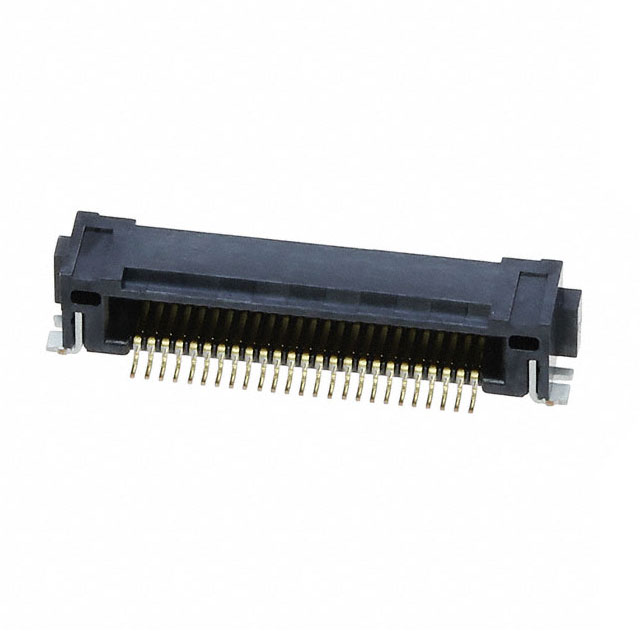

Molex 5033765020	0.4 mm	0.016 in	2	0.25 Ám	10 Áin	Gold	Plug Outer Shroud Contacts	Solder Retention	Surface Mount		0.126 in	3.2 mm	50
Molex 5033763010	0.4 mm	0.016 in	2	0.25 Ám	10 Áin	Gold	Plug Outer Shroud Contacts	Board Guide Solder Retention	Right Angle Surface Mount		0.126 in	3.2 mm	30

SlimStack Board-to-Board Plug, 0.40mm Pitch, Surface Mount, Dual Row, Right-Angle, with Solder Tabs and Plastic Pegs, 40 Circuits
