C3DDG-1 Series

Catalog

IDC CABLE - CKR10G/AE10G/CKR10G

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Number of Rows [custom]	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Features	Cable Termination	Contact Finish	Length	Color	Length [x]	Length [x]
CW Industries C3DDG-1036G	10	0.25 Ám	10 Áin	91.44 cm	3 ft	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold
CW Industries C3DDG-1606M	16	0.25 Ám	10 Áin	152.4 mm	0.5 '	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold	6 "	Multiple Ribbon
CW Industries C3DDG-1606G	16	0.25 Ám	10 Áin	152.4 mm	0.5 '	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold	6 "
CW Industries C3DDG-1006M	10	0.25 Ám	10 Áin	152.4 mm	0.5 '	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold	6 "	Multiple Ribbon

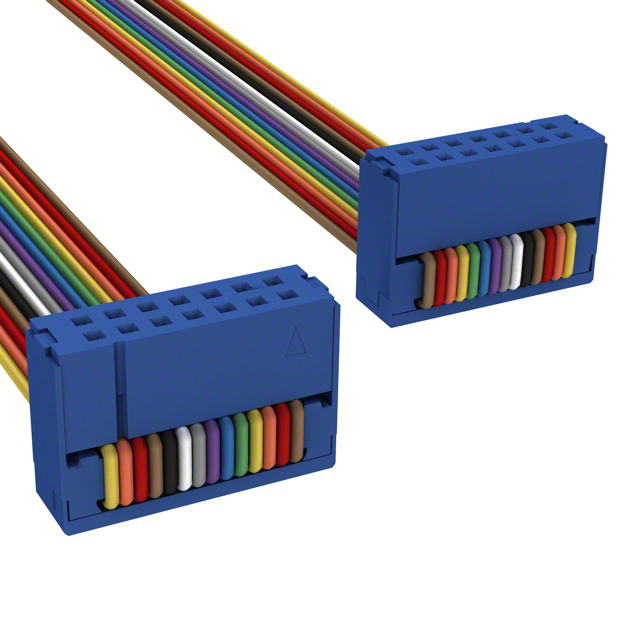

CW Industries C3DDG-1436M	14	0.25 Ám	10 Áin	91.44 cm	3 ft	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold		Multiple Ribbon

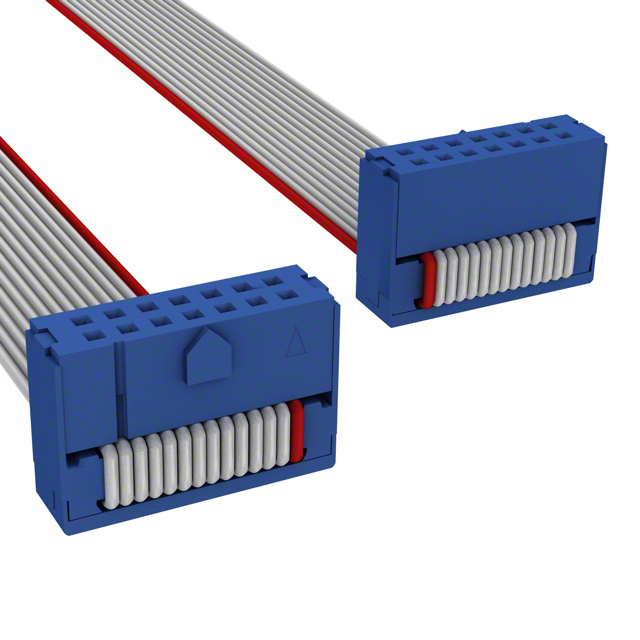

CW Industries C3DDG-1436G	14	0.25 Ám	10 Áin	91.44 cm	3 ft	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold
CW Industries C3DDG-1418G	14	0.25 Ám	10 Áin			2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold			457.2 mm	1.5 ft
CW Industries C3DDG-1406G	14	0.25 Ám	10 Áin	152.4 mm	0.5 '	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold	6 "
CW Industries C3DDG-1018M	10	0.25 Ám	10 Áin			2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold		Multiple Ribbon	457.2 mm	1.5 ft

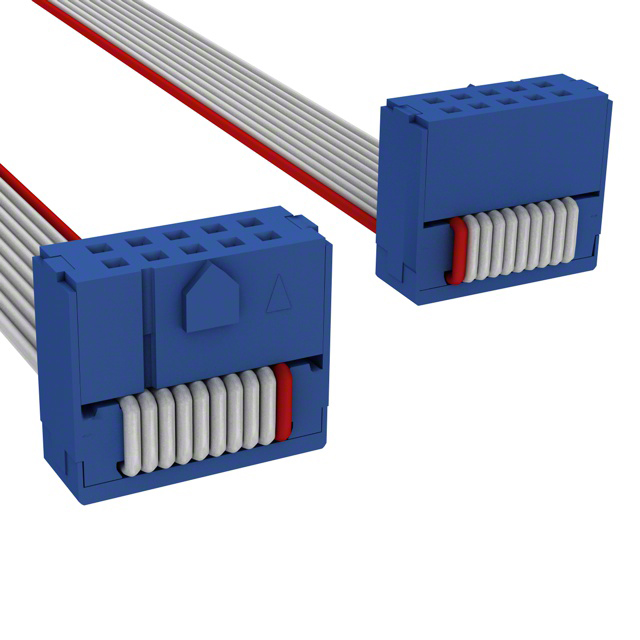

CW Industries C3DDG-1006G	10	0.25 Ám	10 Áin	152.4 mm	0.5 '	2	Unshielded	0.1 in	2.54 mm	Socket to Socket	0.05 in	1.27 mm	Polarizing Key Strain Relief	IDC	Gold	6 "
