317-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K

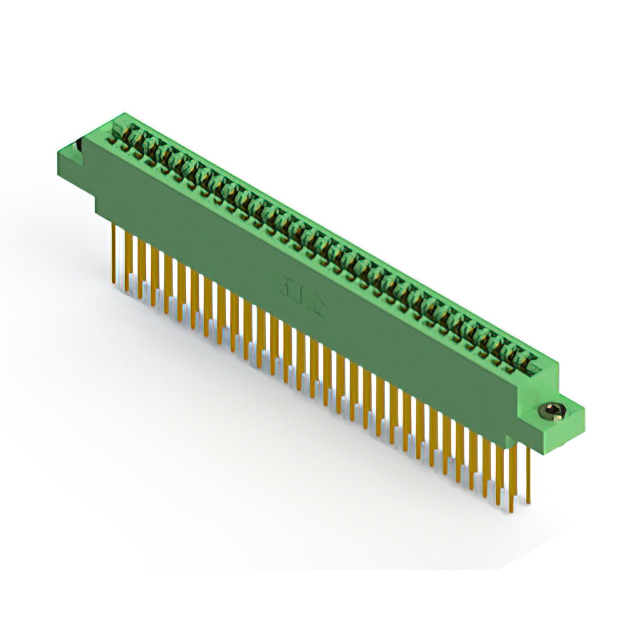

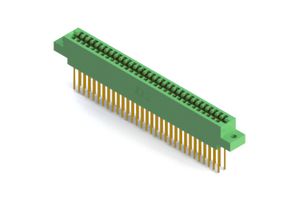

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 62 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Card Type | Contact Type | Gender | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Contact Material | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Rows [custom] | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Max] | Card Thickness [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | 0.156 " | 3.96 mm | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | 0.116 " | 2.95 mm | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount |
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Cantilever | Female | 3.96 mm | 0.156 in | 31 | Copper Alloy | 62 | Gold | 2 | Green | Through Hole | 0.25 Ám | 10 Áin | Dual | Wire Wrap | -65 ░C | 125 °C | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
