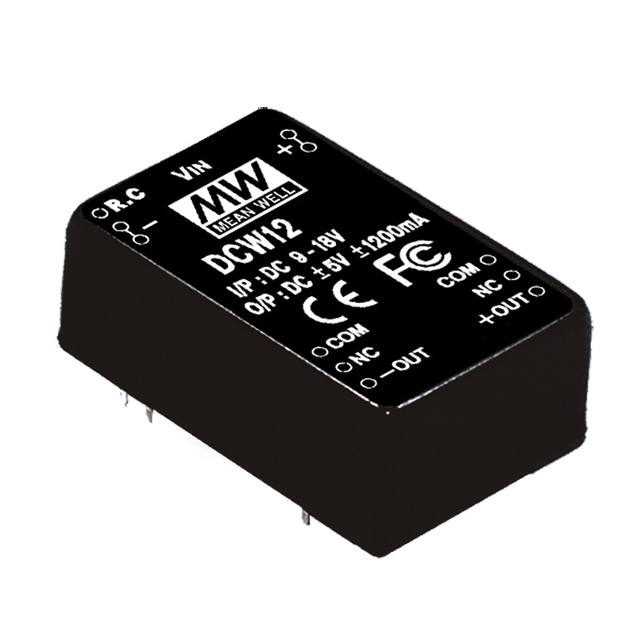

DCW12 Series

Catalog

DC DC CONVERTER +/-15V 12W

Part	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Outputs	Current - Output (Max)	Mounting Type	Efficiency	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
MEAN WELL USA Inc. DCW12B-15	-15 V	1.5 kV	18 V	36 V	15 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	400 mA	Through Hole	84 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW12C-05	-5 V	1.5 kV	36 V	72 V	5 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	1.2 A	Through Hole	81 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW12C-15	-15 V	1.5 kV	36 V	72 V	15 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	400 mA	Through Hole	83 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW12A-15	-15 V	1.5 kV	9 V	18 V	15 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	400 mA	Through Hole	83 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW12A-12	-12 V	1.5 kV	9 V	18 V	12 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	500 mA	Through Hole	84 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW12C-12	-12 V	1.5 kV	36 V	72 V	12 V	12 W	ITE (Commercial)	OCP Remote On/Off SCP	-40 °C	71 °C	24-DIP Module 9 Leads	2	500 mA	Through Hole	84 %	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
