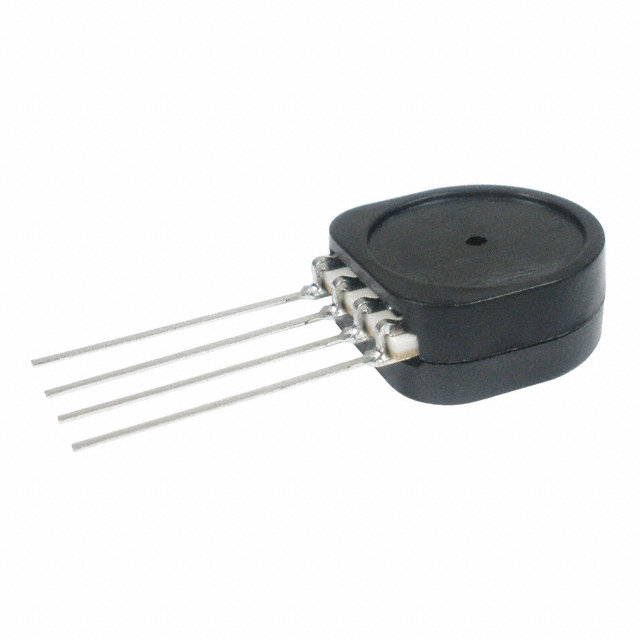

SSCSSNT Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 100PSIG 4.5V 4SIP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Mounting Type	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Features	Output [Max]	Output [Min]	Supplier Device Package	Operating Pressure	Operating Pressure	Pressure Type	Termination Style	Package / Case	Port Style	Output Type	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions SSCSSNT100PGAA5	4.75 V	5.25 V	Board Mount	Through Hole	250 PSI	1723.69 kPa	85 °C	-40 C	Amplified Output Temperature Compensated	4.5 V	0.5 V	4-SIP	689.48 kPa	100 PSI	Vented Gauge	PC Pin	4-SIP Module	No Port	Analog Voltage	0.25 %
Honeywell Sensing and Productivity Solutions SSCSSNT015PGAA5	4.75 V	5.25 V	Board Mount	Through Hole			85 °C	-40 C	Amplified Output Temperature Compensated	4.5 V	0.5 V	4-SIP	103.42 kPa	15 PSI	Vented Gauge	PC Pin	4-SIP Module	No Port	Analog Voltage	0.25 %	206.84 kPa	30 PSI
Honeywell Sensing and Productivity Solutions SSCSSNT030PAAA5	4.75 V	5.25 V	Board Mount	Through Hole			85 °C	-40 C	Amplified Output Temperature Compensated	4.5 V	0.5 V	4-SIP	206.84 kPa	30 PSI		PC Pin	4-SIP Module	No Port	Analog Voltage	0.25 %	413.69 kPa	60 PSI
Honeywell Sensing and Productivity Solutions SSCSSNT030PDAA5	4.75 V	5.25 V	Board Mount	Through Hole	120 PSI	827.37 kPa	85 °C	-40 C	Amplified Output Temperature Compensated	4.5 V	0.5 V	4-SIP	206.84 kPa	30 PSI	Differential	PC Pin	4-SIP Module	No Port	Analog Voltage	0.25 %
Honeywell Sensing and Productivity Solutions SSCSSNT005PDAA5	4.75 V	5.25 V	Board Mount	Through Hole	30 PSI	206.84 kPa	85 °C	-40 C	Amplified Output Temperature Compensated	4.5 V	0.5 V	4-SIP	34.47 kPa	5 PSI	Differential	PC Pin	4-SIP Module	No Port	Analog Voltage	0.25 %
