2823448 Series

Catalog

CONN RCPT FMALE 8POS GOLD CRIMP

Part	Current Rating (Amps)	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Orientation	Primary Material	Termination	Shell Size - Insert	Shielding	Insert Material	Shell Finish	Voltage Rating	Features	Mounting Feature	Connector Type	Material Flammability Rating	Mounting Type	Shell Material	Number of Positions	Contact Finish - Mating

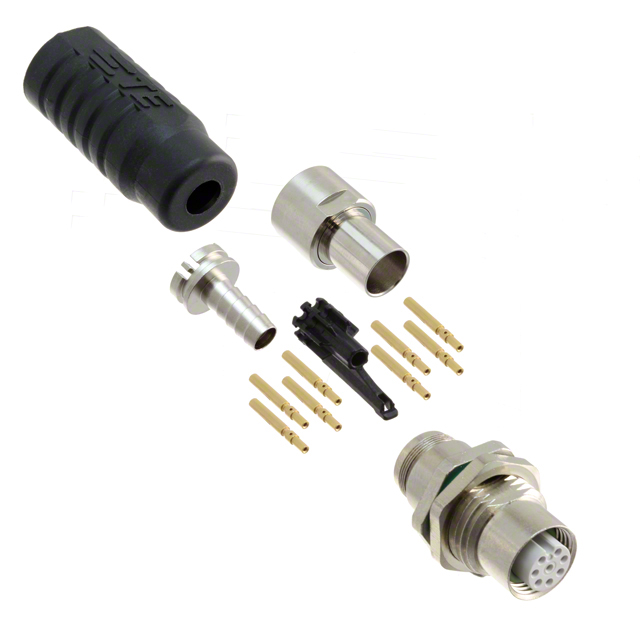

TE Connectivity Raychem Cable Protection 1-2823448-5	2 A	Copper Alloy	Silver	85 °C	-40 °C	IP67 - Dust Tight Waterproof	A	Metal	Crimp	M12-8	Shielded	Thermoplastic	Nickel	30 VDC	Backshell	Bulkhead - Front Side Nut	Receptacle Female Sockets	UL94 V-0	Free Hanging (In-Line) Panel Mount	Brass	8	Gold

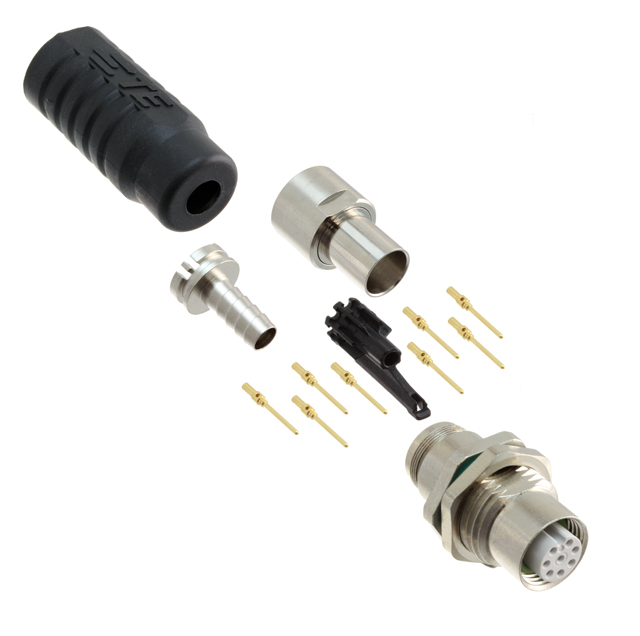

TE Connectivity Raychem Cable Protection 1-2823448-6	2 A	Copper Alloy	Silver	85 °C	-40 °C	IP67 - Dust Tight Waterproof	A	Metal	Crimp	M12-8	Shielded	Thermoplastic	Nickel	30 VDC	Backshell	Bulkhead - Front Side Nut	Receptacle Female Sockets	UL94 V-0	Free Hanging (In-Line) Panel Mount	Brass	8	Gold
