PTC13 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Number of Rows [custom]	Number of Positions Loaded	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Positions	Material Flammability Rating	Contact Type	Mounting Type	Contact Material	Contact Shape	Insulation Height	Insulation Height	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Style	Current Rating (Amps)	Insulation Material	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length
Sullins Connector Solutions PTC13DAFN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header	15.75 mm	0.62 "	Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	0.95 in	24.13 mm	Board to Board Cable	3 A	Polyester Thermoplastic
Sullins Connector Solutions PTC13DGBN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Right Angle Through Hole	Copper Alloy	Square			Solder	0.318 in	8.08 mm			Board to Board Cable	3 A	Polyester Thermoplastic	5.58 mm	0.22 in	6.1 mm	0.24 in
Sullins Connector Solutions PTC13SACN		All	Unshrouded			100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	13	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	0.65 in	16.51 mm	Board to Board Cable	3 A	Polyester Thermoplastic	8.13 mm	0.32 in			1
Sullins Connector Solutions PTC13DFBN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.318 in	8.08 mm	0.638 in	16.21 mm	Board to Board Cable	3 A	Polyester Thermoplastic	5.58 mm	0.22 in
Sullins Connector Solutions PTC13SBDN		All	Unshrouded			100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	13	UL94 V-0	Male Pin	Right Angle Through Hole	Copper Alloy	Square	0.14 in	3.56 mm	Solder	0.23 in	5.84 mm			Board to Board Cable	3 A	Polyester Thermoplastic	10.67 mm	0.42 in			1
Sullins Connector Solutions PTC13DACN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	0.65 in	16.51 mm	Board to Board Cable	3 A	Polyester Thermoplastic	8.13 mm	0.32 in
Sullins Connector Solutions PTC13DFAN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.318 in	8.08 mm			Board to Board Cable	3 A	Polyester Thermoplastic	3.05 mm	0.12 in				13.67 mm	0.538 in
Sullins Connector Solutions PTC13DBEN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Right Angle Through Hole	Copper Alloy	Square			Solder	0.23 in	5.84 mm			Board to Board Cable	3 A	Polyester Thermoplastic	13.21 mm	0.52 in	6.1 mm	0.24 in
Sullins Connector Solutions PTC13DFCN	2	All	Unshrouded	0.1 in	2.54 mm	100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	26	UL94 V-0	Male Pin	Through Hole	Copper Alloy	Square	0.1 in	2.54 mm	Solder	0.318 in	8.08 mm		18.75 mm	Board to Board Cable	3 A	Polyester Thermoplastic	8.13 mm	0.32 in						0.738 in

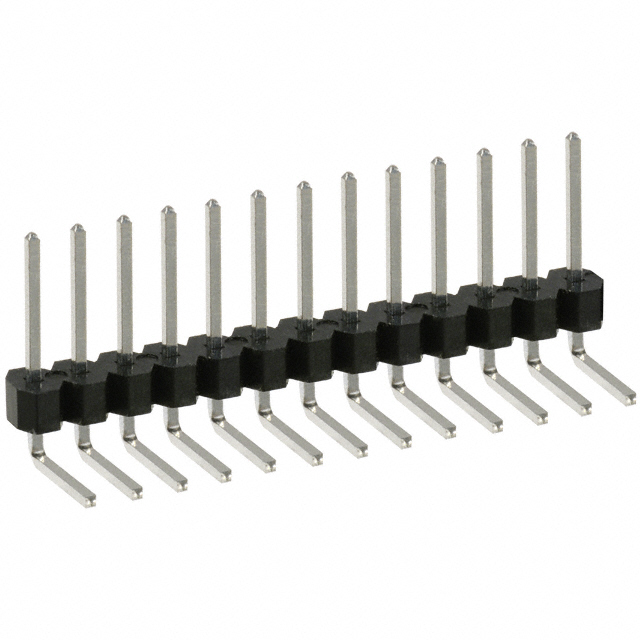

Sullins Connector Solutions PTC13SGBN		All	Unshrouded			100 çin	2.54 çm	Tin	0.1 "	2.54 mm	Header			Black	2.54 µm	100 µin	Push-Pull	13	UL94 V-0	Male Pin	Right Angle Through Hole	Copper Alloy	Square	0.14 in	3.56 mm	Solder	0.318 in	8.08 mm			Board to Board Cable	3 A	Polyester Thermoplastic	5.58 mm	0.22 in			1
