B5743-1 Series

Catalog

4 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. LATCHES (BS RELEASE) ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Color	Contact Length - Post	Contact Length - Post	Shrouding	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Material Flammability Rating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Voltage Rating	Insulation Material	Fastening Type	Number of Rows	Features	Contact Shape	Contact Finish - Post	Connector Type	Contact Type	Number of Positions Loaded	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]
Harwin Inc. B5743-104-M-L-3	29.5 µin	0.75 µm	Right Angle Through Hole	Black	0.118 in	3 mm	Shrouded - 4 Wall	2.2 A	4	-55 C	125 °C	Solder	Phosphor Bronze	29.5 µin	0.75 µm	Board to Board Cable	UL94 V-0	0.156 in	3.96 mm	0.079 "	2 mm	Gold	120 VAC	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	1	Strain Relief Clips	Circular	Gold	Header	Male Pin	All
Harwin Inc. B5743-103-M-L-3	29.5 µin	0.75 µm	Right Angle Through Hole	Black	0.118 in	3 mm	Shrouded - 4 Wall	2.2 A		-55 C	125 °C	Solder	Phosphor Bronze	29.5 µin	0.75 µm		UL94 V-0	0.156 in	3.96 mm	0.079 "	2 mm	Gold	800 VAC	Polybutylene Terephthalate (PBT) Glass Filled	Latch Lock	1		Circular	Gold	Header	Male Pin	All
Harwin Inc. B5743-106-M-T-3	29.5 µin	0.75 µm	Through Hole	Black	0.118 in	3 mm	Shrouded - 4 Wall	2.2 A	6	-55 C	125 °C	Solder	Phosphor Bronze	29.5 µin	0.75 µm	Board to Board Cable	UL94 V-0			0.079 "	2 mm	Gold	800 VAC	Polyester Glass Filled	Latch Lock	1		Circular	Gold	Header	Male Pin	All	7.23 mm	0.219 in	5.56 mm

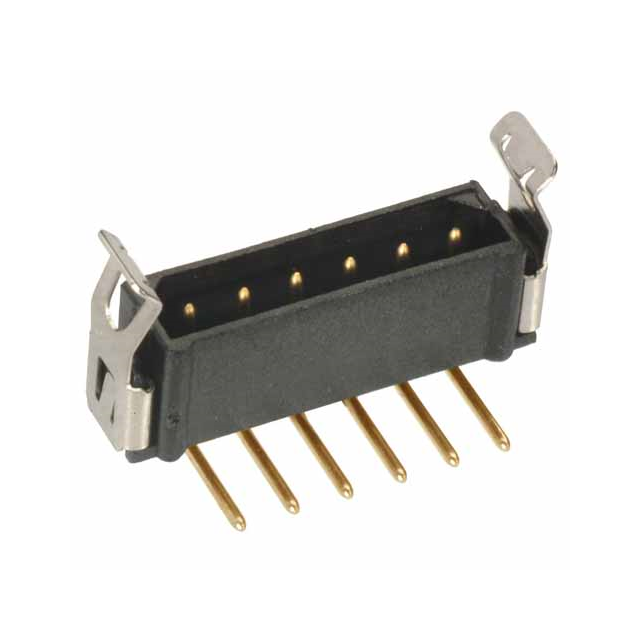

Harwin Inc. B5743-102-M-L-3	29.5 µin	0.75 µm	Right Angle Through Hole	Black	0.118 in	3 mm	Shrouded - 4 Wall	2.2 A	2	-55 C	125 °C	Solder	Phosphor Bronze	29.5 µin	0.75 µm	Board to Board Cable	UL94 V-0	0.156 in	3.96 mm	0.079 "	2 mm	Gold	120 VAC	Polyphenylene Sulfide (PPS) Glass Filled	Latch Lock	1	Strain Relief Clips	Circular	Gold	Header	Male Pin	All

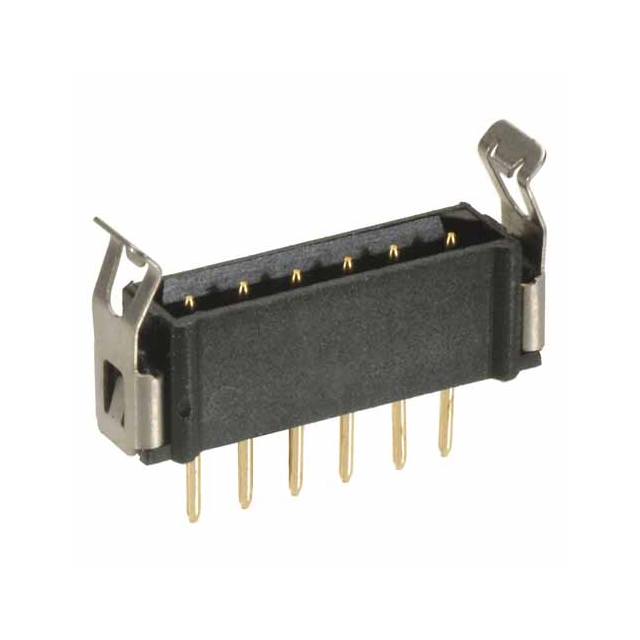

Harwin Inc. B5743-103-M-T-3	29.5 µin	0.75 µm	Through Hole	Black	0.118 in	3 mm	Shrouded - 4 Wall	2.2 A		-55 C	125 °C	Solder	Phosphor Bronze	29.5 µin	0.75 µm	Board to Board Cable	UL94 V-0			0.079 "	2 mm	Gold	800 VAC	Polyester Glass Filled	Latch Lock	1		Circular	Gold	Header	Male Pin	All	7.23 mm	0.219 in	5.56 mm
