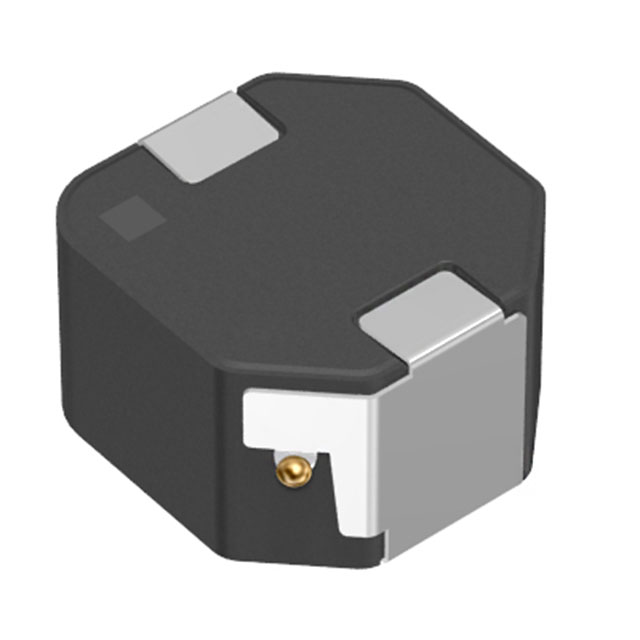

SPM10065V Series

Catalog

POW INDUCTOR, AEC-Q200, 6.8UH, SHLD/21.4A ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Current - Saturation (Isat)	Tolerance	Type	DC Resistance (DCR)	Supplier Device Package	Material - Core	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Mounting Type	Shielding	Inductance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
TDK Corporation SPM10065VT-6R8M-D	10.2 A	15.8 A	20 %	Drum Core Wirewound	13.3 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	6.8 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-1R5M-D	20.2 A	25.6 A	20 %	Drum Core Wirewound	3.1 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	1.5 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-3R3M-D	14.5 A	21.1 A	20 %	Drum Core Wirewound	6 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	3.3 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-1R0M-D	22.9 A	27.4 A	20 %	Drum Core Wirewound	2.4 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	1 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-4R7M-D	11.7 A	19.3 A	20 %	Drum Core Wirewound	9.2 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	4.7 ÁH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-100M-D	8.1 A	15.2 A	20 %	Drum Core Wirewound	21 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	10 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-150M-D	6.5 A	11.7 A	20 %	Drum Core Wirewound	32.7 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	15 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-220M-D	5.4 A	7.8 A	20 %	Drum Core Wirewound	43.3 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	22 µH	Nonstandard	155 C	-55 C
TDK Corporation SPM10065VT-470M-D	4 A	5.9 A	20 %	Drum Core Wirewound	79.8 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	47 µH	Nonstandard	155 C	-55 C

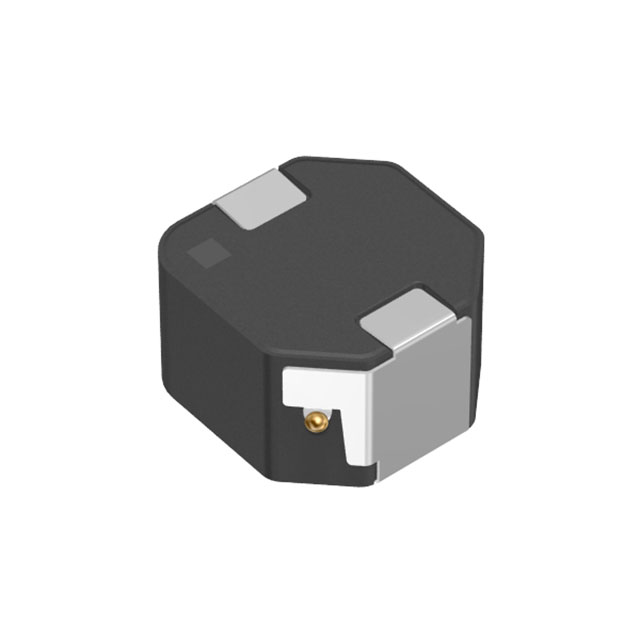

TDK Corporation SPM10065VT-680M-D	3.4 A	5.1 A	20 %	Drum Core Wirewound	121 mOhm	1006	Metal Composite	AEC-Q200	6.5 mm	0.256 in	100 kHz	Surface Mount	Shielded	68 µH	Nonstandard	155 C	-55 C
