CAB421RF Series
Manufacturer: GCT
Beta
⌘K

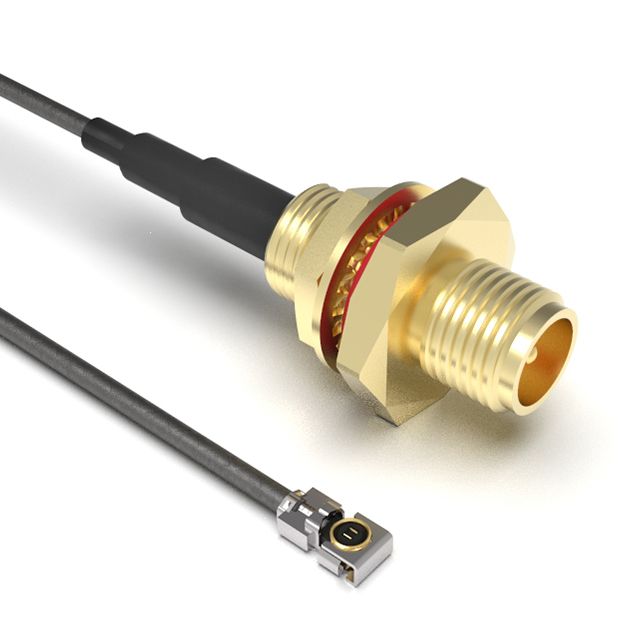

CBL ASSY SMA-MHF4L LK P-P 7.874"
| Part | Features | 1st Contact Gender | Ingress Protection | Length | Length | 1st Connector Mounting Type | 2nd Connector Mounting Type | Frequency - Max [Max] | Color | 1st Connector | 2nd Contact Gender | Cable Impedance | Style | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Cable Type [diameter] | 1st Connector Mounting Feature | Overall Impedance | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP Rated Unmated | Male | IP67/IP68 | 200 mm | 7.874 in | Panel Mount | Free Hanging (In-Line) | 3 GHz | Black | SMA Plug | Female | 50 Ohms | SMA to I-PEX MHF4L LK | 85 °C | -40 C | Coaxial Cable | 1.37 mm | Bulkhead - Rear Side Nut | 50 Ohms | ||
IP Rated Unmated | Male | IP67/IP68 | 200 mm | 7.874 in | Panel Mount | Free Hanging (In-Line) | 3 GHz | Black | SMA Plug | Female | 50 Ohms | SMA to IPEX MHF4L LK | 85 °C | -40 C | Coaxial Cable | 1.37 mm | Bulkhead - Rear Side Nut | 50 Ohms | IPEX MHF4L LK (Locking) Plug Right Angle |
