892-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Material	Contact Finish	Pitch	Pitch	Read Out	Gender	Number of Positions	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Mounting Type	Number of Positions/Bay/Row [custom]	Color	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

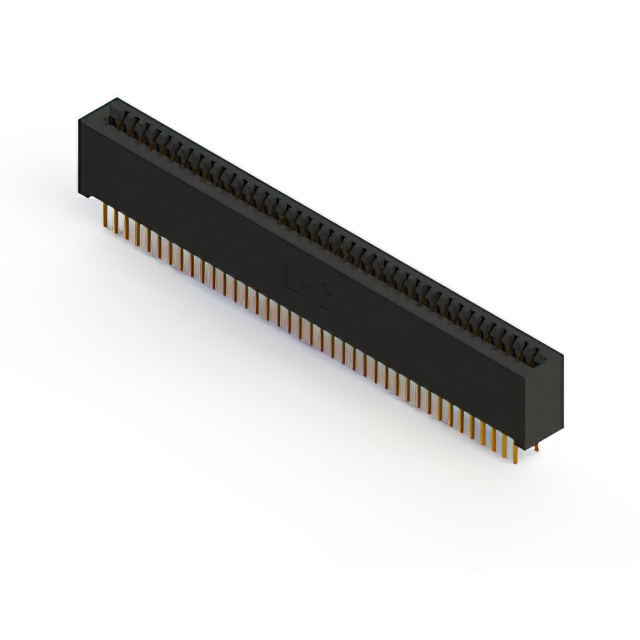

EDAC Inc. 892-078-541-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	38	Black	Wire Wrap
EDAC Inc. 892-078-558-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Right Angle Through Hole	38	Black	Solder	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-078-541-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	38	Black	Wire Wrap	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-078-555-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount	38	Black	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Card Extender
EDAC Inc. 892-078-523-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	38	Black	Solder
EDAC Inc. 892-078-560-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount	38	Black	Solder				Card Extender

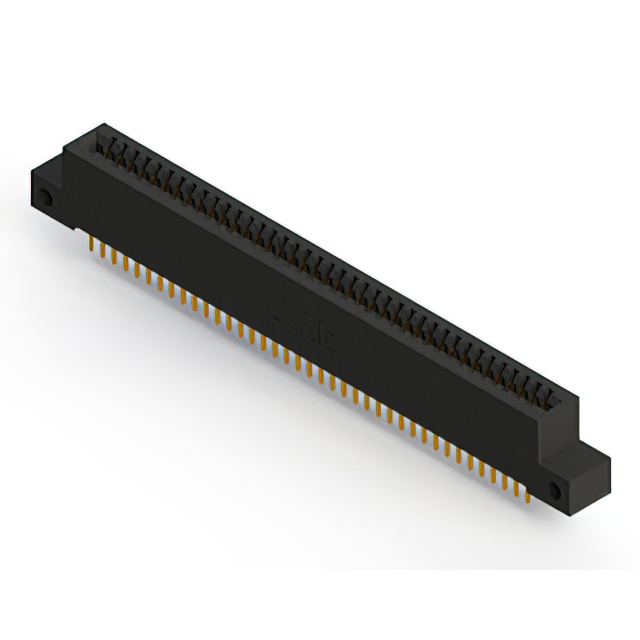

EDAC Inc. 892-078-521-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	38	Black	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-078-560-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount	38	Black	Solder	4-40 Flush Mount Threaded Insert Top Opening			Card Extender
EDAC Inc. 892-078-556-208	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Board Edge Straddle Mount	38	Black	Solder	4-40 Flush Mount Threaded Insert Top Opening			Card Extender
EDAC Inc. 892-078-500-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Copper Alloy	Gold	0.1 "	2.54 mm	Dual	Female	78	2	125 °C	-40 C	Non Specified - Dual Edge	Through Hole	38	Black	Solder Eyelet(s)	Floating Bobbin Flush Mount	0.116 "	2.95 mm
