PSMNR90 Series

Catalog

PSMNR90-30BL - N-CHANNEL 30 V 1.0 MΩ LOGIC LEVEL MOSFET IN D2PAK@EN-US D2PAK 3-PIN

Part	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)	Supplier Device Package	Rds On (Max) @ Id, Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Technology	Package / Case	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Mounting Type	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	FET Feature	Gate Charge (Qg) (Max) @ Vgs
Freescale Semiconductor - NXP PSMNR90-30BL,118	4.5 V 10 V	-55 °C	175 ░C	20 V	D2PAK	1 mOhm	120 A	30 V	14850 pF	MOSFET (Metal Oxide)	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2.2 V	306 W	Surface Mount	N-Channel	243 nC

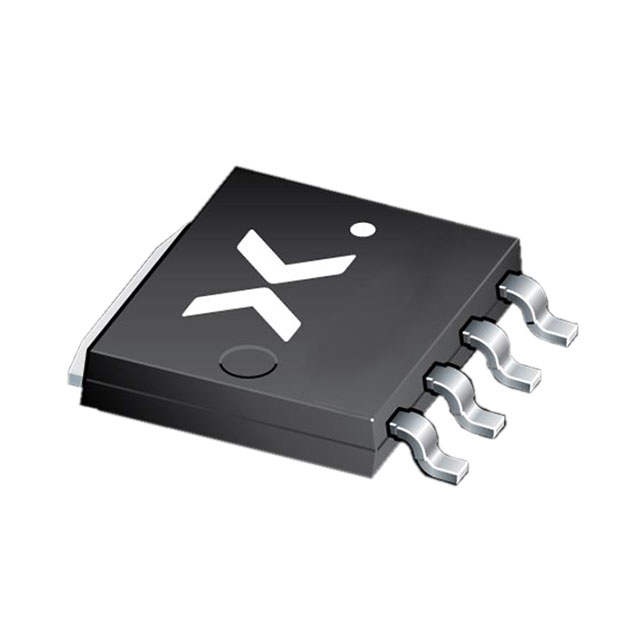

Freescale Semiconductor - NXP PSMNR90-40YLHX	4.5 V 10 V	-55 °C	175 ░C	20 V	LFPAK56 Power-SO8		300 A	40 V	12673 pF	MOSFET (Metal Oxide)	SOT-1023 4-LFPAK	2.05 V		Surface Mount	N-Channel		333 W	0.94 mOhm	Schottky Diode (Body)	168 nC
Freescale Semiconductor - NXP PSMNR90-40SSHJ	10 V	-55 °C	175 ░C	20 V	LFPAK88 (SOT1235)		375 A	40 V	12888 pF	MOSFET (Metal Oxide)	SOT-1235	3.6 V	375 W	Surface Mount	N-Channel	166 nC		0.9 mOhm	Schottky Diode (Body)
