895-122 Series
Manufacturer: EDAC Inc.
Beta
⌘K

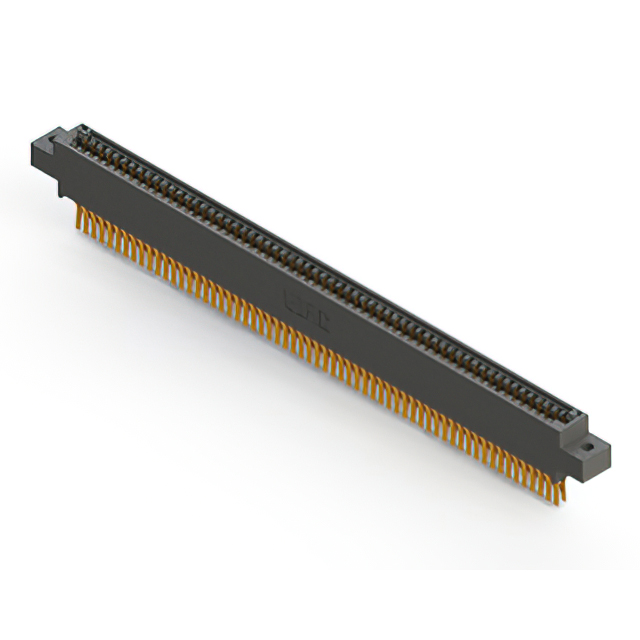

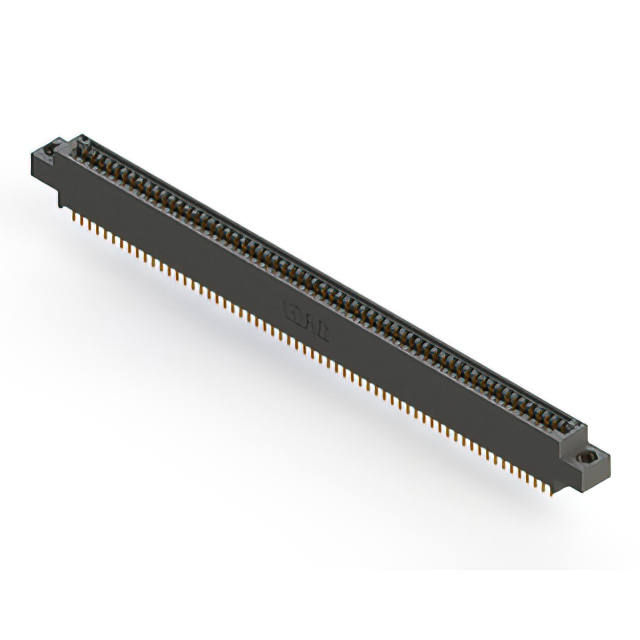

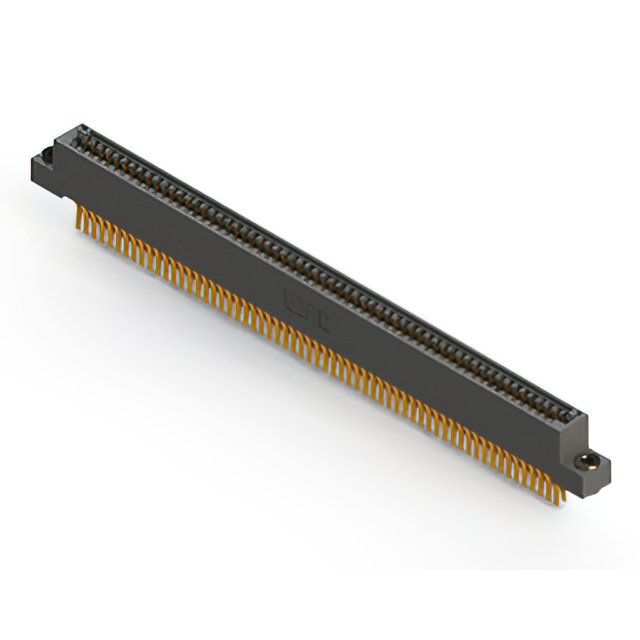

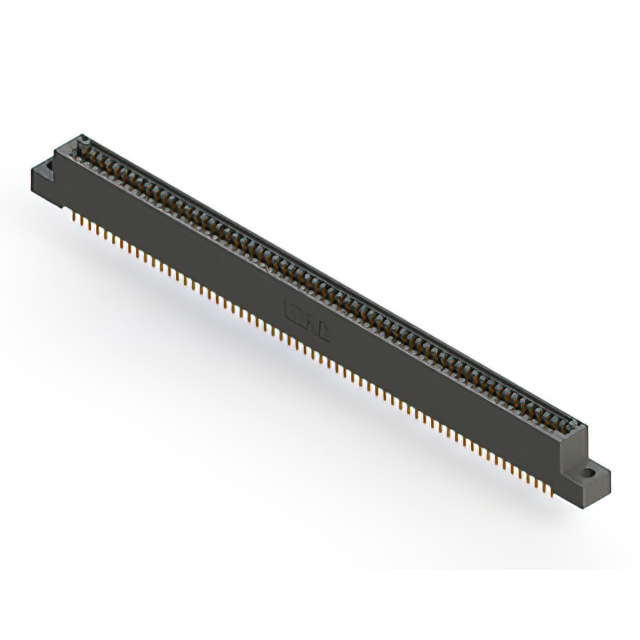

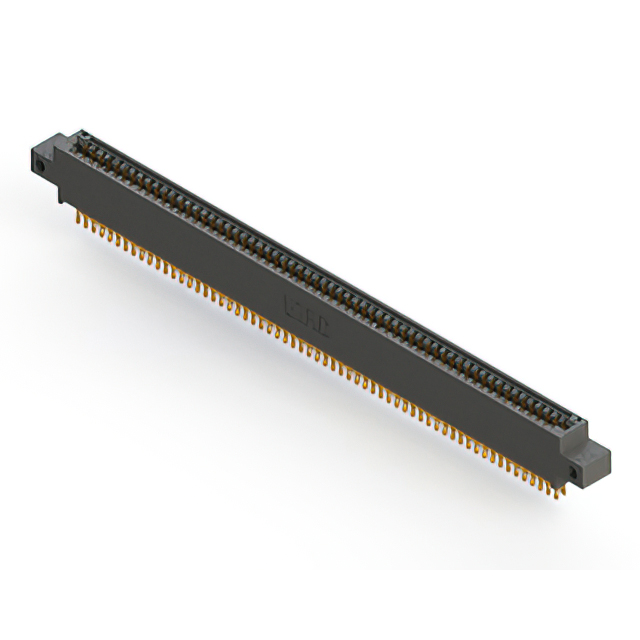

CONN EDGE DUAL FML 122POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Termination | Card Type | Contact Material | Number of Rows [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Number of Positions | Read Out | Contact Type | Mounting Type | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | 2 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Black | 122 | Dual | Cantilever | Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | 2 | 3.96 mm | 0.156 " | Black | 122 | Dual | Cantilever | Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | 122 | Dual | Cantilever | Right Angle Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | 3.25 mm | 0.128 " | Black | 122 | Dual | Cantilever | Board Edge Straddle Mount | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | Card Extender | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Black | 122 | Dual | Cantilever | Board Edge Straddle Mount | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | Card Extender |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder Eyelet(s) | Non Specified - Dual Edge | Copper Alloy | 2 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Black | 122 | Dual | Cantilever | Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Black | 122 | Dual | Cantilever | Board Edge Straddle Mount | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | Card Extender |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | M3 Threaded Insert Top Mount Opening | Black | 122 | Dual | Cantilever | Board Edge Straddle Mount | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | Card Extender | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Non Specified - Dual Edge | Copper Alloy | 2 | 3.25 mm | 0.128 " | Black | 122 | Dual | Cantilever | Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Solder | Non Specified - Dual Edge | Copper Alloy | 2 | M3 Threaded Insert Top Mount Opening | Black | 122 | Dual | Cantilever | Through Hole | 61 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Female | 0.1 " | 2.54 mm |
