3RH21314 Series

Manufacturer: Siemens

Catalog

CONTACTOR RELAY 3NO+1NC AC 200V

Part	Release Time	Operate Time	Coil Power	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Features	Termination Style	Contact Rating (Current)	Coil Voltage [Min]	Coil Voltage [Max]	Contact Form	Must Operate Voltage	Coil Voltage
Siemens 3RH21314AN60	15 ms	33 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	Auxiliary Contacts	Screw Terminal	10 A	200 VAC/DC	220 VAC/DC	4PST-3NO/1NC (3 Form A 1 Form B)
Siemens 3RH21314AR60	15 ms	33 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	Auxiliary Contacts	Screw Terminal	10 A	400 VAC	440 VAC	4PST-3NO/1NC (3 Form A 1 Form B)

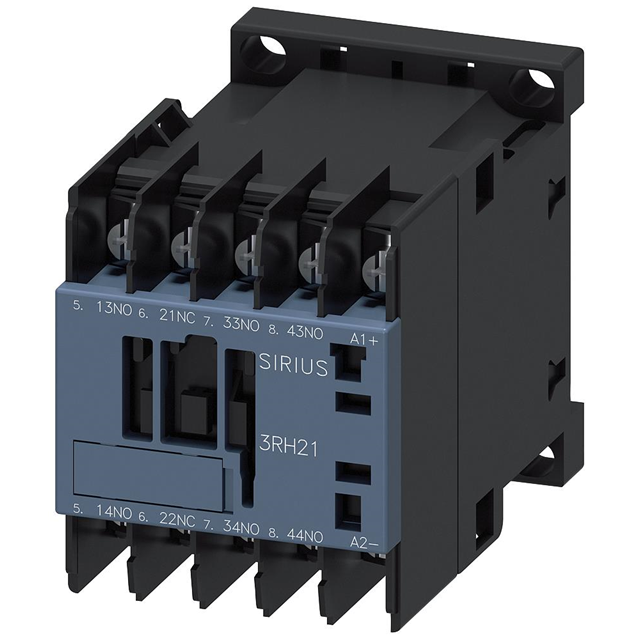

Siemens 3RH21314BB40	13 ms	100 ms	4 W	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	Auxiliary Contacts	Screw Terminal	10 A			4PST-3NO/1NC (3 Form A 1 Form B)	19.2 VDC	24 VDC
Siemens 3RH21314AG60	15 ms	33 ms	37 VA	Chassis Mount DIN Rail	-25 °C	60 °C	690 VAC	Auxiliary Contacts	Screw Terminal	10 A	100 VAC	110 VAC	4PST-3NO/1NC (3 Form A 1 Form B)
