078171 Series
Manufacturer: Molex
Beta
⌘K

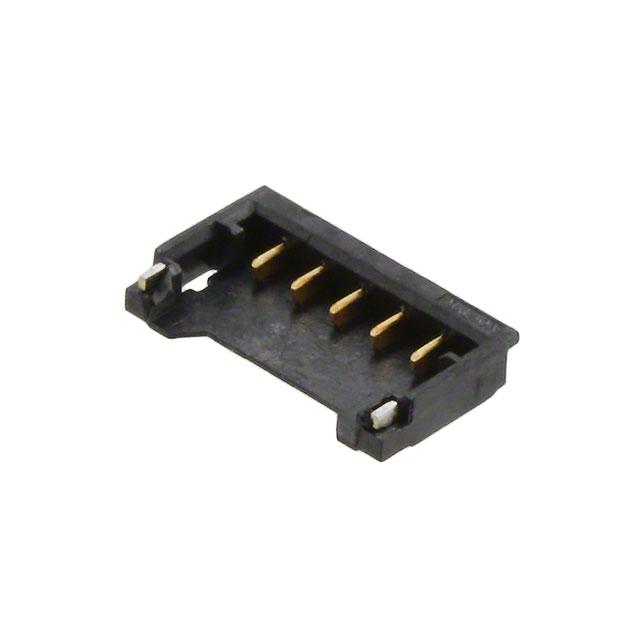

CONN HEADER SMD 5POS 1.2MM
| Part | Material Flammability Rating | Voltage Rating | Connector Type | Insulation Material | Insulation Height [z] | Insulation Height [z] | Fastening Type | Mounting Type | Shrouding | Style | Contact Finish - Mating | Contact Shape | Contact Type | Applications | Termination | Number of Rows | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | 50 V | Plug | Liquid Crystal Polymer (LCP) | 0.055 in | 1.4 mm | Friction Lock | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | Gold | Rectangular | Tab | Automotive General Purpose Lighting Telecommunications | Solder | 1 | Copper Alloy | -40 °C | 105 ░C | Black | All | 0.047 in | 1.2 mm | Solder Retention | |

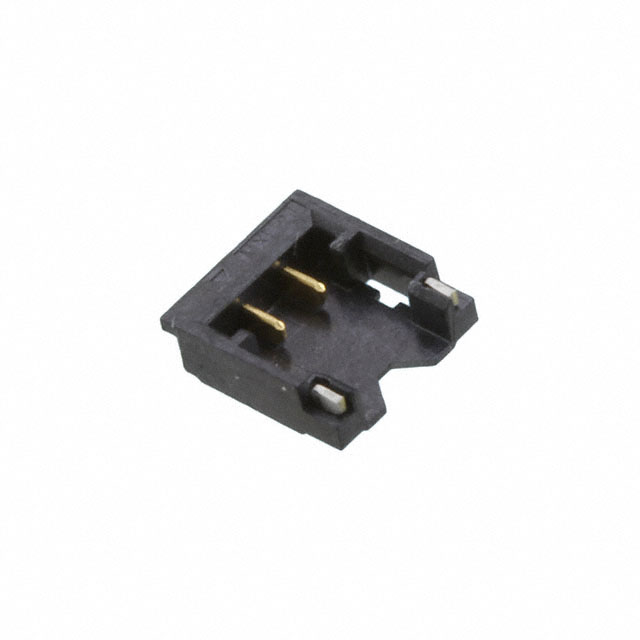

 Molex | UL94 V-0 | 50 V | Plug | Liquid Crystal Polymer (LCP) | 0.055 in | 1.4 mm | Friction Lock | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | Gold | Rectangular | Tab | Automotive General Purpose Lighting Telecommunications | Solder | 1 | Copper Alloy | -40 °C | 105 ░C | Black | All | 0.047 in | 1.2 mm | Solder Retention | 2 |
