6609930 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

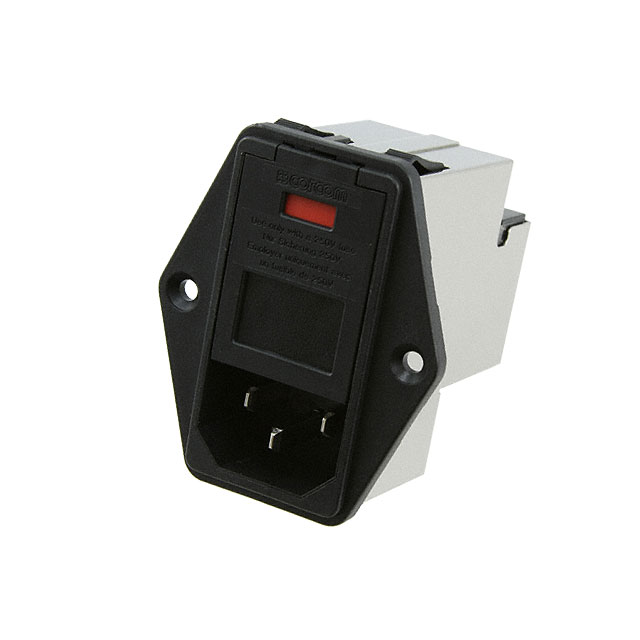

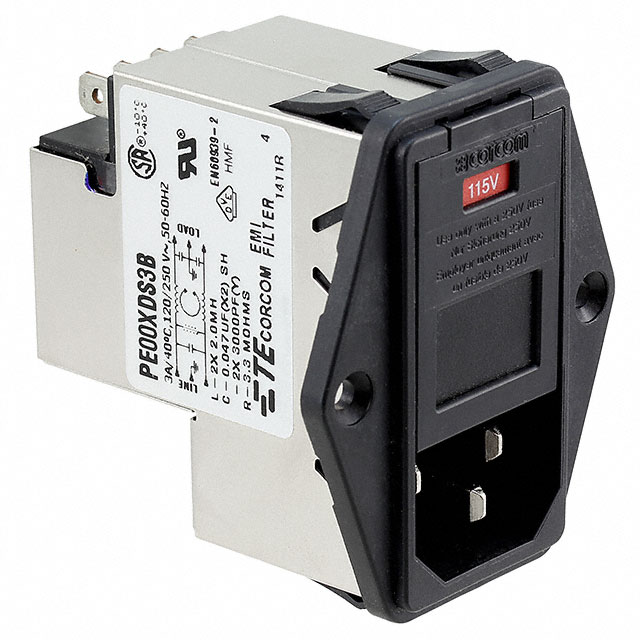

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Termination | Termination | Termination | Connector Type | Features | Fuse Holder, Drawer | Current Rating - Appliance Inlet | Panel Cutout Dimensions | Filter Type | Accomodates a Fuse | Connector Style | Voltage Rating - Appliance Inlet | Current Rating - Filter | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Shielded Voltage Selector | Twin Fused | 3 A | Variable Size | Filtered (EMI RFI) - Commercial | IEC 320-C14 | 120 VAC | 3 A | Flange Panel Mount | CSA UL VDE | |
 TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Voltage Selector | Twin Fused | 6 A | Filtered (EMI RFI) - Commercial Medical | IEC 320-C14 | 120 VAC | 6 A | Flange Panel Mount | CSA UL VDE | ||
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Voltage Selector | Twin Fused | 10 A | Filtered (EMI RFI) - Commercial | IEC 320-C14 | 120 VAC | 10 A | Flange Panel Mount | CSA UL VDE | ||
 TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Conversion Clip Shielded | Fuse Holder | 6 A | Variable Size | Filtered (EMI RFI) - Commercial | IEC 320-C14 | 120 VAC | 6 A | Flange Panel Mount | CSA UL VDE | |
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Conversion Clip Voltage Selector | Fuse Holder | 10 A | Filtered (EMI RFI) - Commercial Medical | IEC 320-C14 | 120 VAC | 10 A | Flange Panel Mount | CSA UL VDE | ||
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Voltage Selector | Twin Fused | 6 A | Filtered (EMI RFI) - Commercial Medical | IEC 320-C14 | 120 VAC | 6 A | Flange Panel Mount | CSA UL VDE | ||
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Twin Fused | 10 A | Filtered (EMI RFI) - Commercial Medical | IEC 320-C14 | 120 VAC | 10 A | Flange Panel Mount | CSA UL VDE | |||
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Voltage Selector | Twin Fused | 3 A | Filtered (EMI RFI) - Commercial | IEC 320-C14 | 120 VAC | 3 A | Flange Panel Mount | CSA UL VDE | ||
 TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Shielded | Twin Fused | 10 A | Variable Size | Filtered (EMI RFI) - Commercial Medical | IEC 320-C14 | 120 VAC | 10 A | Flange Panel Mount | CSA UL VDE | |
TE Connectivity Corcom Filters | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Quick Connect | 0.187 " | 4.7 mm | Receptacle Male Blades - Module | Voltage Selector | Twin Fused | 6 A | Filtered (EMI RFI) - Commercial | IEC 320-C14 | 120 VAC | 6 A | Flange Panel Mount | CSA UL VDE |
