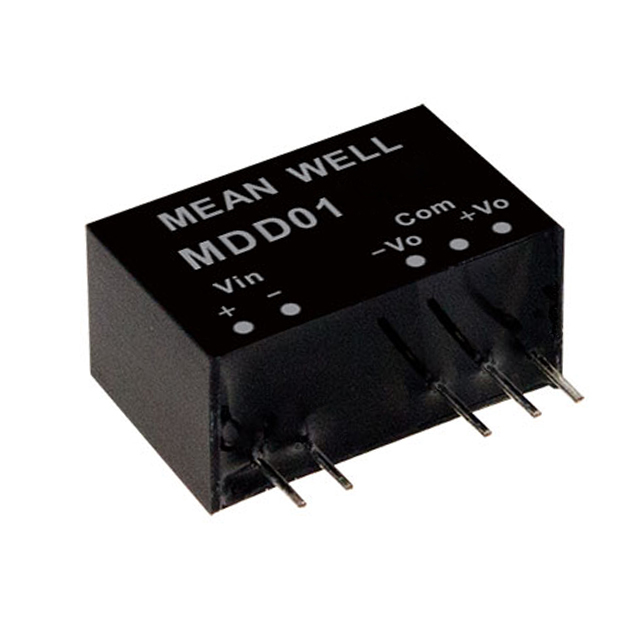

MDD01 Series

Catalog

DC DC CONVERTER +/-5V 1W

Part	Number of Outputs	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 2	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Features	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max) [Max]
MEAN WELL USA Inc. MDD01N-05	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-5 V	21.6 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	5 V	77 %	SCP	100 mA	100 mA	26.4 V	6000 VDC
MEAN WELL USA Inc. MDD01L-09	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-9 V	4.5 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	9 V	81 %	SCP			5.5 V	6000 VDC	56 mA
MEAN WELL USA Inc. MDD01N-09	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-9 V	21.6 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	9 V	79 %	SCP			26.4 V	6000 VDC	56 mA
MEAN WELL USA Inc. MDD01L-05	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-5 V	4.5 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	5 V	79 %	SCP	100 mA	100 mA	5.5 V	6000 VDC
MEAN WELL USA Inc. MDD01M-05	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-5 V	10.8 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	5 V	78 %	SCP	100 mA	100 mA	13.2 V	6000 VDC
MEAN WELL USA Inc. MDD01M-09	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-9 V	10.8 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	9 V		SCP			13.2 V	6000 VDC	56 mA
MEAN WELL USA Inc. MDD01M-15	2	Isolated Module	Through Hole	85 °C	-40 C	Medical	-15 V	10.8 V	7-SIP	7-SIP Module 5 Leads	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	15 V	76 %	SCP			13.2 V	6000 VDC	34 mA	34 mA
