G-INS-PG16 Series

Catalog

CABLE GLAND 10-14MM PG16 BRASS

Part	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Ingress Protection	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Thread Length	Thread Length	Thread Size	Includes

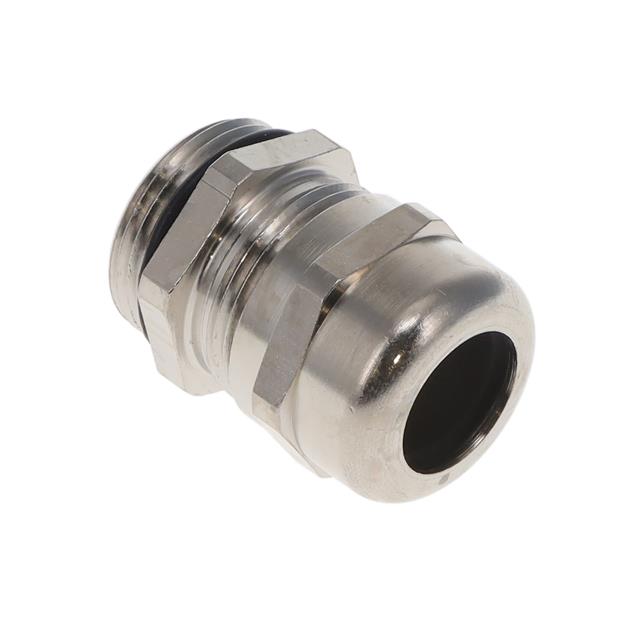

Phoenix Contact 1411174	Cable Gland	10 mm	0.394 "	Silver	IP66 IP68 IP69	14 mm	0.551 in	-40 C	100 °C	Brass Nickel Plated	0.256 in	6.5 mm	PG16	O-Ring Seal
Phoenix Contact 1424489	Cable Gland	10 mm	0.394 "	Gray	IP68 - Dust Tight Waterproof	14 mm	0.551 in	-40 C	100 °C	Polyamide (PA) Nylon	0.394 in	10 mm	PG16	Seal
Phoenix Contact 1424499	Cable Gland	10 mm	0.394 "	Black	IP68 - Dust Tight Waterproof	14 mm	0.551 in	-40 C	100 °C	Polyamide (PA) Nylon	0.394 in	10 mm	PG16	Seal
Phoenix Contact 1411144	Cable Gland	10 mm	0.394 "	Gray	IP66 IP68	14 mm	0.551 in	-40 C	100 °C	Polyamide (PA) Nylon	0.394 in	10 mm	PG16	Seal
