RT4539 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

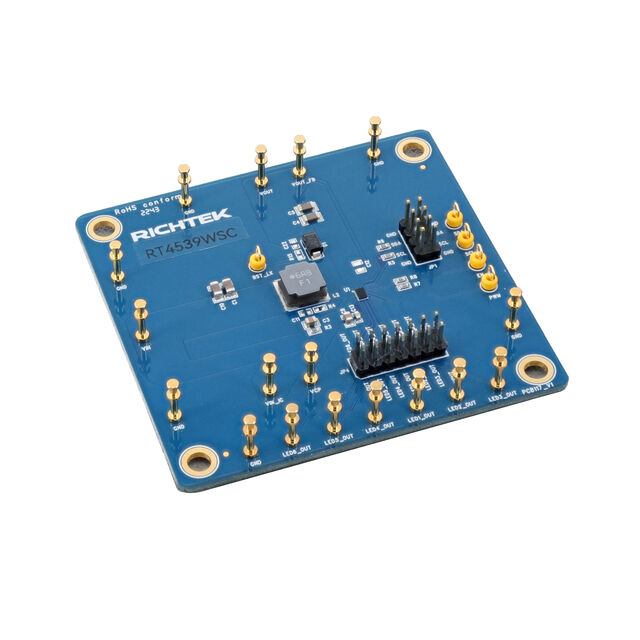

EVAL BOARD FOR RT4539
| Part | Supplied Contents | Contents | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Utilized IC / Part | Voltage - Output | Current - Output / Channel | Features | Type | Frequency [Min] | Frequency [Max] | Topology | Voltage - Supply (Min) [Min] | Internal Switch(s) | Mounting Type | Voltage - Supply (Max) [Max] | Voltage - Output [Max] | Voltage - Output [Min] | Package / Case | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Applications | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Board(s) | Board(s) | 2.7 V | 24 V | 6 Non-Isolated Outputs | RT4539 | 36 V | 35 mA | Dimmable | |||||||||||||||||||
 Richtek USA Inc. | 35 mA | DC DC Regulator | 300 kHz | 1.6 MHz | Step-Up (Boost) | 2.7 V | Surface Mount | 24 V | 36 V | 2.7 V | 20-UFBGA WLCSP | 1.71 | 2.37 | 20-WLCSP | Backlight | 6 | 85 C | -40 ¯C | Analog I2C PWM |
