320631 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

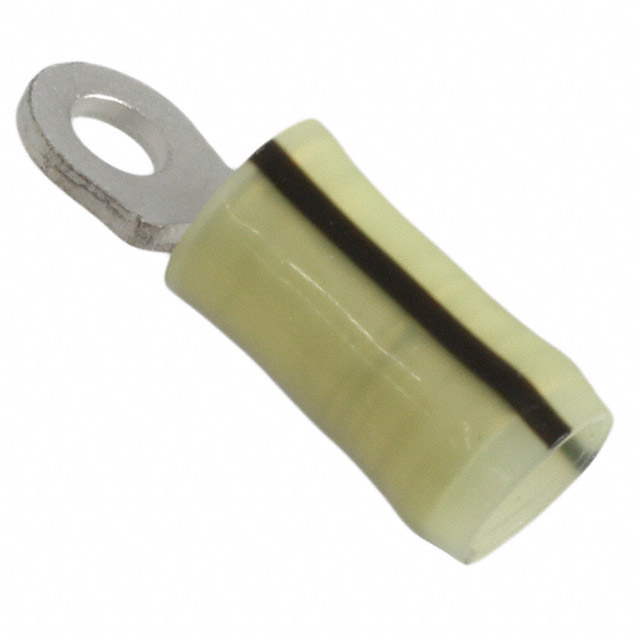

TERMINAL, PIDG RING 16-14 HD 6 ROHS COMPLIANT: YES
| Part | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Features | Terminal Type | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Termination | Insulation | Color | Contact Finish | Material - Insulation | Thickness | Thickness | Stud/Tab Size | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.15 " | 3.81 mm | 0.23 in | 5.84 mm | Heavy Duty Serrated Termination | Circular | 0.553 in | 14.05 mm | 7.14 mm | 0.281 in | Free Hanging (In-Line) | Crimp | Insulated | Yellow Black Stripe | Tin | Nylon Polyamide (PA) | 0.048 in | 1.22 mm | 6 Stud | Copper |
