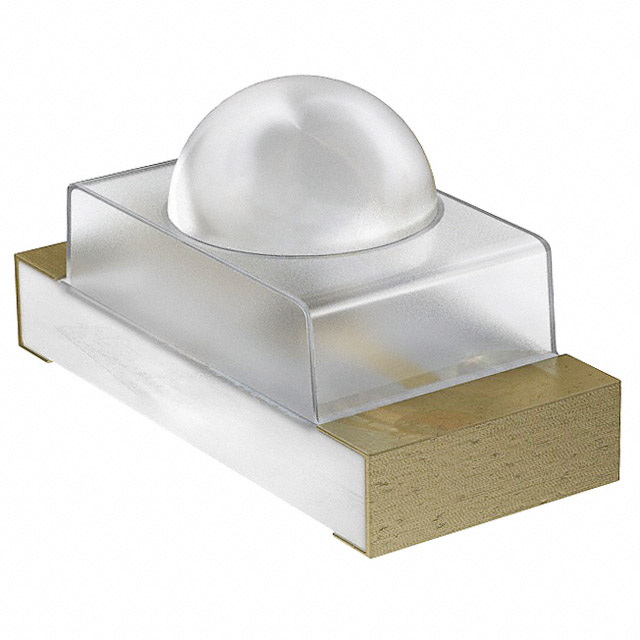

APTD2012 Series

Catalog

LED BLUE CLEAR 2012 SMD

Part	Millicandela Rating	Lens Color	Configuration	Package / Case	Mounting Type	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength - Dominant	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Supplier Device Package	Wavelength - Peak	Lens Style	Type	Wavelength	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If
Kingbright APTD2012LQBC/D	50 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Blue	465 nm	1.15 mm	2.65 V	30 °	Clear	2012	460 nm	Round with Domed Top
Kingbright APTD2012LVBC/D	90 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Blue	470 nm	1.15 mm	2.65 V	30 °	Clear	2012	465 nm	Round with Domed Top

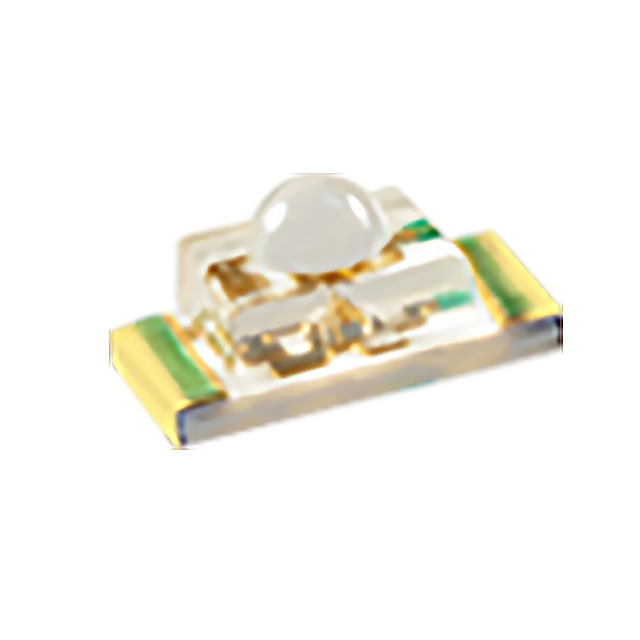

Kingbright APTD2012F3C				0805	Surface Mount								40 °					Infrared (IR)	940 nm	Top View	85 °C	-40 C	2 mW/sr	50 mA
Kingbright APTD2012SF4C				0805	Surface Mount							1.3 V	40 °					Infrared (IR)	880 nm	Top View	85 °C	-40 C		50 mA	0.8 mW/sr
Kingbright APTD2012LCGCK	40 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Green	570 nm	1.15 mm	1.9 V	40 °	Clear	2012		Round with Domed Top
Kingbright APTD2012LZGCK	440 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Green	525 nm	1.15 mm	2.65 V	30 °	Clear	2012	515 nm	Round with Domed Top
Kingbright APTD2012LSYCK	90 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Yellow	590 nm	1.15 mm	1.85 V	40 °	Clear	2012	590 nm	Round with Domed Top
Kingbright APTD2012LSURCK	150 mcd	Colorless	Standard	0805	Surface Mount	2 mA	2 mm	1.25 mm	Red	630 nm	1.15 mm	1.75 V	40 °	Clear	2012	645 nm	Round with Domed Top
