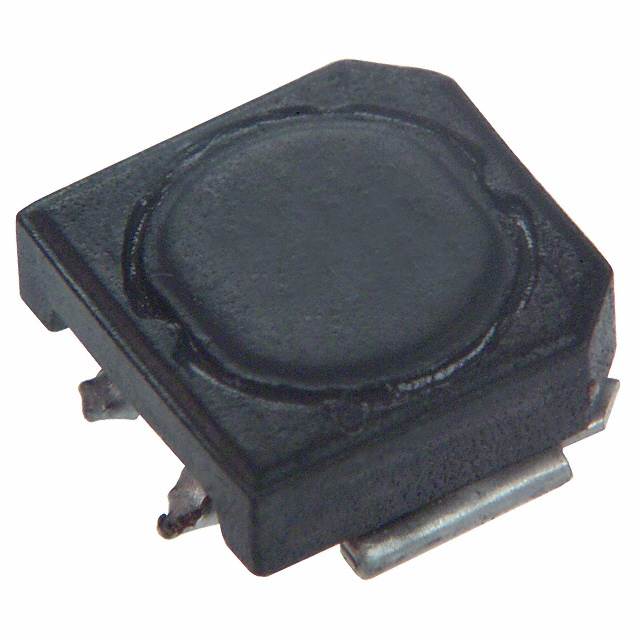

ELL-6RH Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 39UH 550MA 410MOHM SMD
| Part | Current Rating (Amps) | Tolerance | Package / Case | Shielding | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Inductance Frequency - Test | DC Resistance (DCR) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.55 A | 20 % | Nonstandard | Shielded | 39 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 410 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 300 mA | 20 % | Nonstandard | Shielded | 100 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 1 Ohm | Surface Mount |
Panasonic Industrial Automation Sales | 1.58 A | 20 % | Nonstandard | Shielded | 4.7 ÁH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 49 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 1.6 A | 20 % | Nonstandard | Shielded | 3.3 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 44 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 350 mA | 20 % | Nonstandard | Shielded | 82 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 870 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 1.8 A | 20 % | Nonstandard | Shielded | 2.7 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 39 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 400 mA | 20 % | Nonstandard | Shielded | 68 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 770 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 650 mA | 20 % | Nonstandard | Shielded | 27 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 260 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 1.2 A | 20 % | Nonstandard | Shielded | 8.2 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 87 mOhm | Surface Mount |
Panasonic Industrial Automation Sales | 1.4 A | 20 % | Nonstandard | Shielded | 6.2 µH | 0.236 " | 0.252 " | 6 mm | 6.4 mm | Wirewound | 100 kHz | 62 mOhm | Surface Mount |
