316-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN SOCKET 27POS 0.1 GOLD PCB

...

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]

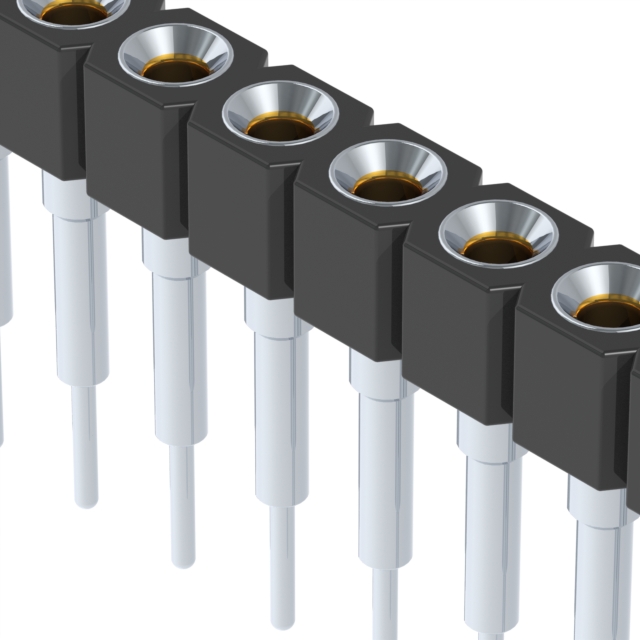

Mill-Max Manufacturing Corp. 316-41-127-41-003000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	27	0.25 µm	10 µin	Female Socket	8 mm	0.315 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A

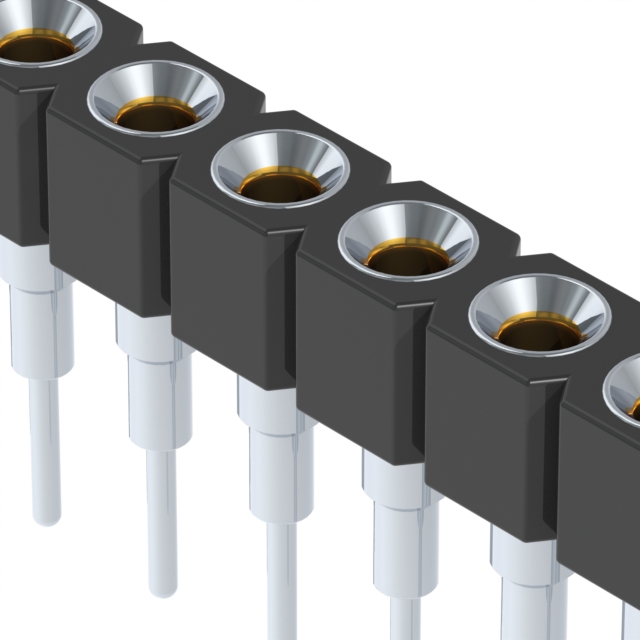

Mill-Max Manufacturing Corp. 316-41-152-41-006000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	52	0.25 µm	10 µin	Female Socket			Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A	0.236 "	6 mm
Mill-Max Manufacturing Corp. 316-41-112-41-007000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	12	0.25 µm	10 µin	Female Socket	10.2 mm	0.402 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-111-41-006000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	11	0.25 µm	10 µin	Female Socket			Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A	0.236 "	6 mm
Mill-Max Manufacturing Corp. 316-41-124-41-003000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	24	0.25 µm	10 µin	Female Socket	8 mm	0.315 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-148-41-007000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	48	0.25 µm	10 µin	Female Socket	10.2 mm	0.402 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-123-41-003000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	23	0.25 µm	10 µin	Female Socket	8 mm	0.315 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-112-41-003000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	12	0.25 µm	10 µin	Female Socket	8 mm	0.315 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-118-41-007000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	18	0.25 µm	10 µin	Female Socket	10.2 mm	0.402 in	Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A
Mill-Max Manufacturing Corp. 316-41-121-41-006000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Circular	21	0.25 µm	10 µin	Female Socket			Solder	Tin	Push-Pull	All	Through Hole	Elevated Socket	0.1 "	2.54 mm	Black	-55 C	125 °C	Gold	1	UL94 V-0	0.118 in	3 mm	3 A	0.236 "	6 mm
