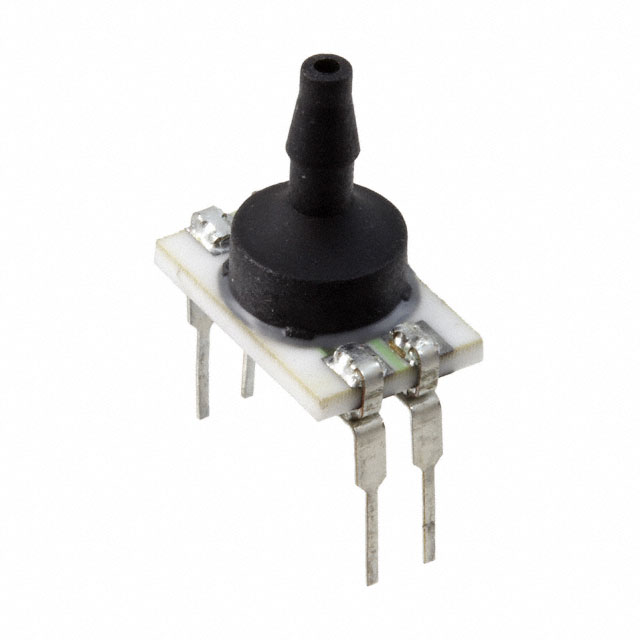

TBPDANS Series

Catalog

BASIC PRESSURE SENSOR

Part	Termination Style	Output [Min]	Output [Max]	Features	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Output Type	Accuracy	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Port Size	Port Size	Port Size	Pressure Type	Applications
Honeywell Sensing and Productivity Solutions TBPDANS060PGUCVN
Honeywell Sensing and Productivity Solutions TBPDANS005PGUCV	PC Pin	0 mV	25 mV	Temperature Compensated	Barbed	206.84 kPa	30 PSI	4-DIP (0.453" 11.50mm) Top Port	Wheatstone Bridge	0.15 %	5 PSI	34.47 kPa	12 V	1.5 V	125 °C	-40 C	Through Hole	4-DIP	Male Tube	2.74 mm	0.11 in	Vented Gauge	Board Mount
Honeywell Sensing and Productivity Solutions TBPDANS001PGUCV	PC Pin	0 mV	7.5 mV	Temperature Compensated	Barbed	87.56 kPa	12.7 PSI	4-DIP (0.453" 11.50mm) Top Port	Wheatstone Bridge	0.2 %	1 PSI	6.89 kPa	12 V	1.5 V	125 °C	-40 C	Through Hole	4-DIP	Male Tube	2.74 mm	0.11 in	Vented Gauge	Board Mount
